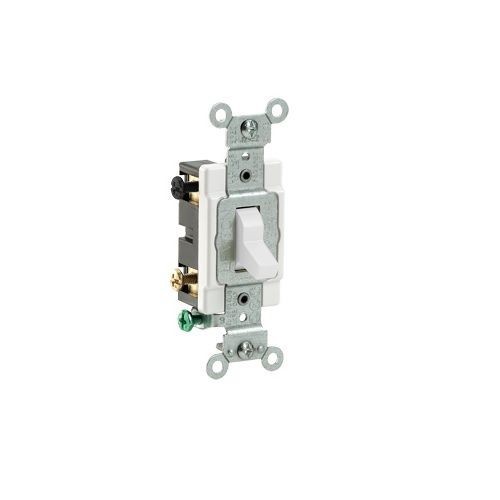

Leviton® CS415-2W 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating

Selected Leviton® CS415-2W 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating
Leviton® CS415-2W 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating

Documents

Short Description

Levitons Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.

Features

  • Heavy-duty pre-plated steel mounting strap for maximum strength
  • All screws are plated-steel combination-head for fast installation with standard, Phillips and Robertson head screwdrivers
  • AC Quiet switch
  • Grounding
  • Steel 8-32 terminal screw
  • Steel strap
  • Polycarbonate toggle, PBT base, thermoplastic body, nylon cover
  • 1/2 hp at 120 VAC, 2 hp at 240 VAC
  • Box mounting
  • Side wire connection
  • UL 94-V2 Flammability

Specification

Material
Thermoplastic
Mounting
Surface
Power Rating
1/2 hp/2 hp
Terminal Type
Screw
Type
4-Way
Voltage Rating
120/277 VAC
Application
Commercial
Standard & Approvals
ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
Amperage Rating
15 A
Dimensions
46 in H x 1.31 in W x 0.92 in D
Actuator
Toggle
Color
White
Environmental Conditions
-40 to 120 deg C
