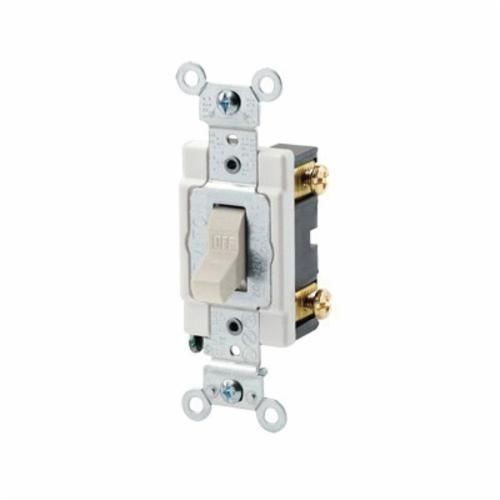

Leviton® CSB1-20T Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating, SP Contact

Selected CSB1-20TLeviton® CSB1-15T Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SP Contact
CSB1-20TLeviton® CSB1-15T Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SP Contact

Documents

Short Description

Leviton® Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 A Commercial switches, available in a wide variety of colors, wiring options and other features.

Features

  • Large head triple-drive combination screws (standard, phillips and robertson) for fast wiring installation
  • Heavy-gauge, rust-resistant steel mounting strap
  • Accepts no 14 to 12 AWG copper or copper clad wire
  • Convenient break-off plaster ears for best alignment
  • Large switch contacts for maximum conductivity

Specification

Material
Thermoplastic
Mounting
Surface
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Actuator
Toggle
Amperage Rating
20 A
Catalog ID
LEVCSB1-20T
Color
Light Almond
Enclosure
NEMA WD-1/WD-6
Environmental Conditions
-40 to 65 deg C Operating Temperature
Terminal Type
Back/Side Wired
Voltage Rating
120/277 VAC
Application
Commercial Applications
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NOM (057), UL Fed Spec WS896E (File E7458), UL 20 Listed, UL94-V2 Flammability Rated
Dimensions
46 in H x 1.31 in W x 1.47 in D
Contact Rating
1 hp at 120 VAC/2 hp at 240 VAC
Contact Configuration
SP
