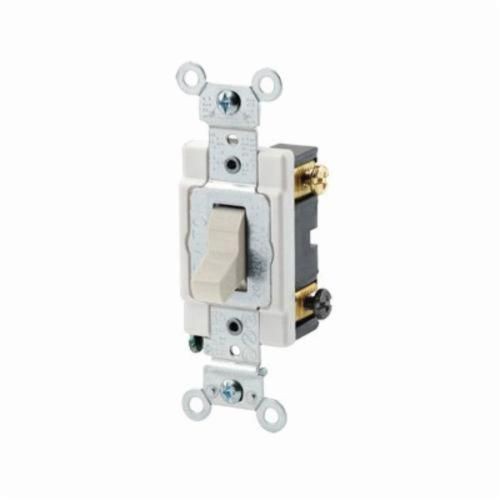

Leviton® CSB4-15T 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating
Leviton® CSB4-15T 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating
SKU: LEVCSB4-15T
Manufacturer Part Number: CSB4-15T
UPC: 078477301722
Documents
Short Description
Features
- Heavy-duty pre-plated steel mounting strap for maximum strength
- All screws are plated-steel combination-head for fast installation with standard, Phillips and Robertson head screwdrivers
- External clamp-type wiring terminals provides secure connection of solid or stranded wire for back or side wiring (CSB1 and CSB3)
- AC Quiet switch
- Grounding
- Steel 8-32 terminal screw
- Steel strap
- Polycarbonate toggle, PBT base, thermoplastic body, nylon cover
- 1/2 hp at 120 VAC, 2 hp at 240 VAC
- Box mounting
- Back and side wire connection
- UL 94-V2 Flammability
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Surface |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 15 A |
| Catalog ID | LEVCSB4-15T |
| Color | Light Almond |
| Dimensions | 46 in H x 1.31 in W x 1.47 in D |
| Environmental Conditions | -40 to 120 deg C |
| Power Rating | 1/2 hp/2 hp |
| Terminal Type | Screw |
| Type | 4-Way |
| Voltage Rating | 120/277 VAC |
| Application | Commercial |
| Standard & Approvals | ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed |
