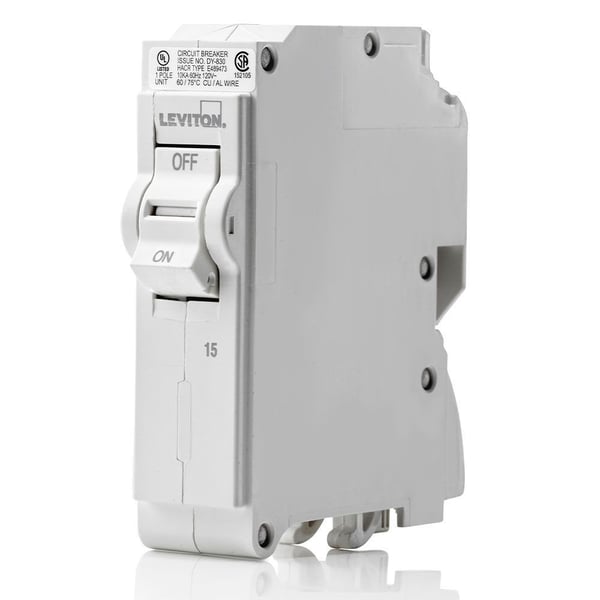

Leviton® LB115 Basic Standard Branch Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles, Hydraulic Magnetic Trip

Selected LB115Leviton® LB115 Basic Standard Branch Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles, Hydraulic Magnetic Trip
LB115Leviton® LB115 Basic Standard Branch Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles, Hydraulic Magnetic Trip

Documents

Short Description

Leviton® circuit breakers provide overload and short circuit protection and feature an all plug-on design. All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough in without circuit breakers installed. Branch circuit breakers are easily plugged-on at final installation. Circuit breakers also feature color indicators in the handle to easily see operational status at a glance.

Specification

Interrupt Rating
10 kA
Mounting Type
Plug-On
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Dimensions
3.9 in H x 1 in W x 3.1 in D
Temperature Rating
-40 to 85 deg C
Voltage Rating
120 VAC
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA-C22.2 5-02, EMC Listed, FCC Listed, UL 489
Catalog ID
LEVLB115
Type
Basic Standard
Trip Type
Hydraulic Magnetic
