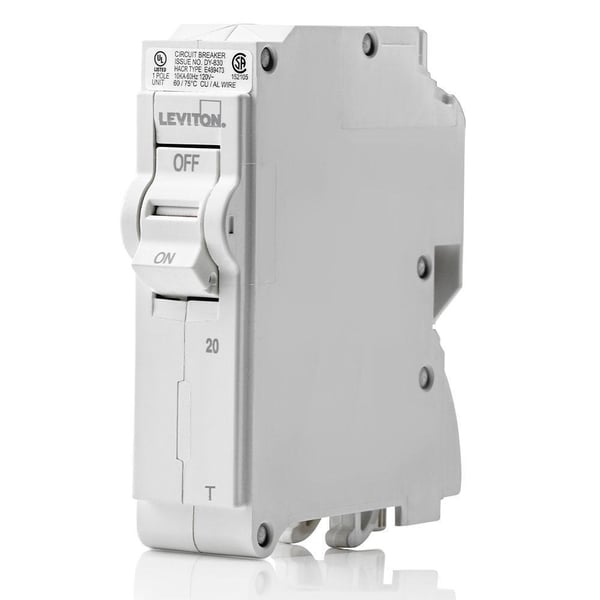

Leviton® LB120-T Standard Circuit Breaker With Instruction Sheet, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Selected Leviton LB120 T
Leviton LB120 T

Documents

Short Description

The most advanced circuit breakers on the market are also the fastest to install. Only Leviton® circuit breakers feature an all plug on design, so you can wire the entire panel at rough-in, without a single circuit breaker present. Intuitive diagnostics such as LEDs on electronic circuit breakers indicate fault type and color indicators in each rocker handle display operational status at a glance.

Features

  • Simple - features an all plug-on design - no wiring to the circuit breaker
  • Intuitive - color indicators in the handle to easily see operational status at a glance
  • Approachable - contemporary aesthetic and rocker style handle are more user friendly

Specification

Application
For outdoor load center applications
Standard & Approvals
CSA-C22.2 File No. 5-02, EMC Compatible, FCC Certified, HACR Certified, UL File No. 489
Interrupt Rating
10 kA
Number Of Poles
1
Voltage Rating
120 VAC
Actuator Type
Rocker Handle
Amperage Rating
20 A
Dimensions
1 in W x 3.1 in D x 3.9 in H
Connection Type
Plug-On
Trip Type
Thermal Magnetic
Temperature Rating
77 to 104 deg F
