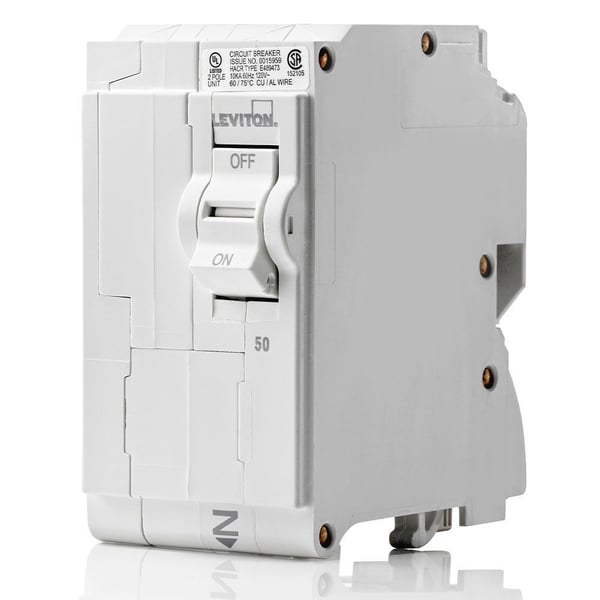

Leviton® LB250 Basic Standard Branch Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Hydraulic Magnetic Trip

Selected LB250Leviton® LB250 Basic Standard Branch Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Hydraulic Magnetic Trip
LB250Leviton® LB250 Basic Standard Branch Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Hydraulic Magnetic Trip

Documents

Short Description

Leviton® circuit breakers provide overload and short circuit protection and feature an all plug-on design. All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough in without circuit breakers installed. Branch circuit breakers are easily plugged-on at final installation. Circuit breakers also feature color indicators in the handle to easily see operational status at a glance.

Specification

Interrupt Rating
10 kA
Mounting Type
Plug-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
50 A
Catalog ID
LEVLB250
Dimensions
3.9 in H x 2 in W x 3.1 in D
Temperature Rating
-40 to 85 deg C
Trip Type
Hydraulic Magnetic
Type
Basic Standard
Voltage Rating
120/240 VAC
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA-C22.2 5-02, EMC Listed, FCC Listed, UL 489
