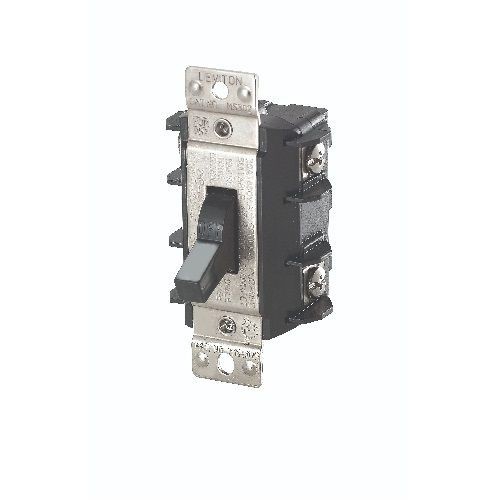

Leviton® MS302-DSB Industrial Grade Non-Grounding Standard AC Motor Starter Switch, 600 VAC, 30 A, 15 hp Power Rating

Selected Leviton® MS302-DSB Industrial Grade Non-Grounding Standard AC Motor Starter Switch, 600 VAC, 30 A, 15 hp Power Rating
Leviton® MS302-DSB Industrial Grade Non-Grounding Standard AC Motor Starter Switch, 600 VAC, 30 A, 15 hp Power Rating

Documents

Short Description

Leviton®'s Industrial Grade AC Manual Motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Specification

Material
Thermoplastic Polyester
Number Of Poles
2
Operating Cycles
100
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Catalog ID
LEVMS302-DSB
Color
Black
Contact Rating
30 A at 600 VAC
Environmental Conditions
-40 to 60 deg C Temperature
Power Rating
15
Terminal Type
Back/Side Wired
Type
Standard
Voltage Rating
600 VAC
Application
Commercial Applications
Standard & Approvals
ANSI C-73, NOM 057, UL 508 File No. E63969, cUL per CSA C22.2 No. 111 File No. E63969, ISO 9001
