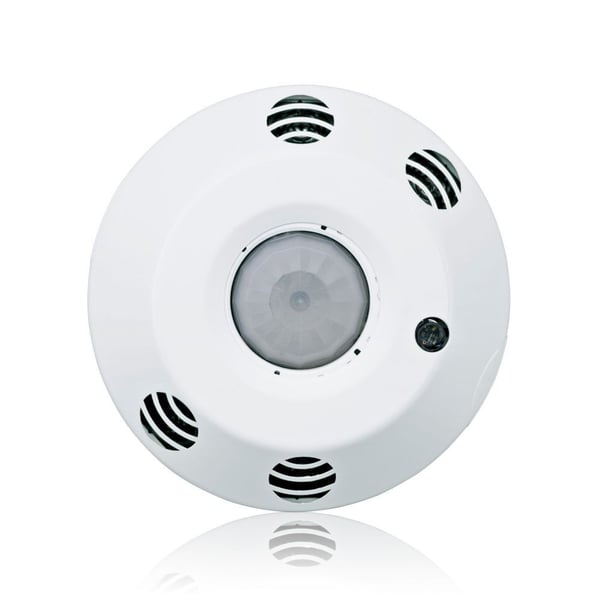

Leviton® Provolt™ O6C20-MDW 2-Zone Dimming Room Controller With Multi-Tech Occupancy Sensor, (2) Sinking Control Signals, 120/277 VAC, 2 to 5 mA, 50/60 Hz

Selected O6C20-MDWLeviton® Provolt™ O6C20-MDW 2-Zone Dimming Room Controller With Multi-Tech Occupancy Sensor, (2) Sinking Control Signals, 120/277 VAC, 2 to 5 mA, 50/60 Hz
O6C20-MDWLeviton® Provolt™ O6C20-MDW 2-Zone Dimming Room Controller With Multi-Tech Occupancy Sensor, (2) Sinking Control Signals, 120/277 VAC, 2 to 5 mA, 50/60 Hz

Documents

Short Description

The Provolt™ 0 to 10 VDC dimming room controllers (PRC) are line voltage multi-technology sensors offering high performance lighting controls, daylight harvesting and code compliant capabilities in one easy-to-install package. For true daylight harvesting applications, the integrated photocells provide consistent daylight harvesting levels by actively dimming the connected loads ) up and down in response to available natural light. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor based technology to optimize performance. Ideal for stand alone, code compliant room control, the devices automatically turn lights ON and keep them ON when occupancy is detected and automatically turn lights OFF when the space is vacant or unoccupied. Download the Provolt™ Bluetooth mobile app for easy configuration via any tablet or smart device.

Features

  • Simplified daylight harvesting with 1 and 2-zone control for full range 0 to 10 VDC dimming
  • Set demand response dimming capabilities and auto ON, auto OFF, partial ON and partial OFF with the Provolt™ bluetooth mobile app
  • Code compliant features auto ON/OFF partial ON (lights automatically turn ON to 50% when a space is occupied, manual ON control for above 50%) partial OFF (lights will dim to 30% when is a space is unoccupied
  • Basic controls include ON, OFF, dim up and dim down using a 4-button keypads
  • Closed loop photocell detects total measurement of both natural and artificial light in the space
  • The PRC comes with 180 and 360 deg photocells for closed loop dimming applications
  • Uses ultrasonic (doppler shift) motion detection giving maximum sensitivity and PIR motion detection and preventing false triggers
  • Works in conjunction with 1, 2 and 4-button keypads (PLVSW) for individual manual zone control
  • Ladderless Commissioning™ and programming through bluetooth enabled smart devices for install and forget convenience
  • AutoCal™ feature automatic photocell target level calibration
  • Meets energy code requirements including daylight harvesting and demand response
  • 2-relay

Specification

Temperature Rating
0 to 40 deg C
Voltage Rating
120/277 VAC
Standard & Approvals
ASHRAE 90.1, cUL Listed, IECC Certified, NY LLC48, CE/NOM Certified, UL 924
Minimum Order Qty
1
Order Interval
1
Amperage Rating
2 to 5 mA
Catalog ID
LEVO6C20-MDW
Dimensions
4.81 in Dia x 2.39 in H
Dimming Rate
0 to 10 VDC
Frequency Rating
50/60 Hz
Mounting Type
Ceiling
Application
Commercial, Residential and Indoor Applications
Type
2-Zone Dimming
Suitable For Use With
Dimming Ballast/LED Driver
Specifications
2000 sq-ft Coverage
