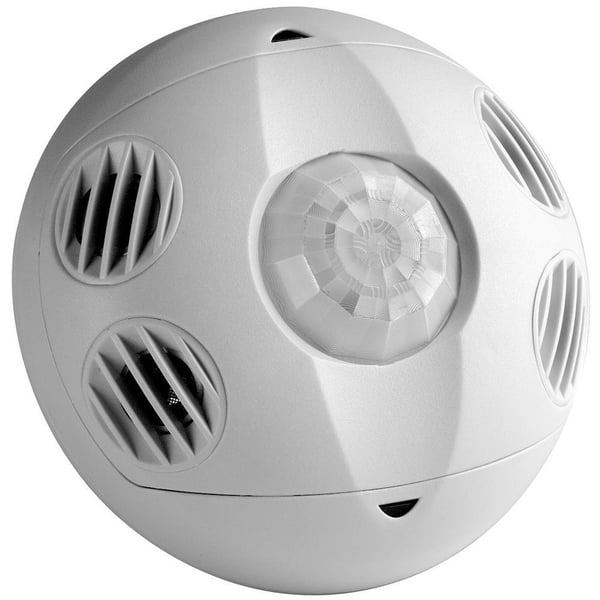

Leviton® OSC10-MWW Auto Adapting Low Voltage Multi-Technology Walk Through Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Ceiling Mount

Selected OSC10-MWWLeviton® OSC10-MWW Auto Adapting Low Voltage Multi-Technology Walk Through Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Ceiling Mount
OSC10-MWWLeviton® OSC10-MWW Auto Adapting Low Voltage Multi-Technology Walk Through Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Ceiling Mount

Documents

Short Description

Occupancy sensors have two tasks: 1) Keeping the lights ON while the room is occupied and 2) Saving energy by keeping the lights OFF while the room is unoccupied. Passive infrared (PIR) is an excellent and precise technology for initially turning the lights ON, but lacks sensitivity for minor motion at distances. Ultrasonic (U/S) technology provides maximum sensitivity with continuous reflective high frequency waves. This is optimal for keeping the lights ON. Leviton multi-technology sensors combine the benefits of both PIR and U/S technologies for unrivaled performance and reliability.

Features

  • Self-adjusting - internal microprocessor continually analyzes, evaluates and adjusts sensitivity and time delay settings, performance is kept at a maximum and user complaints are eliminated
  • Fast, simple installation - easy ceiling mount, 3-wire connection and twist lock sensor attachment for 360 deg rotation and flexibility
  • Maximum reliability, low cost - digital circuitry uses a minimum of components
  • Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity
  • Wide coverage - units from 500 to 2000 sq-ft
  • Rugged, high impact, injection molded plastic device, custom true white color to meet true white applications

Specification

Response Frequency
40 kHz
Sensor Type
PIR/Ultrasonic
Temperature Rating
32 to 104 deg F
Time Delay
30 s to 30 min
Type
Auto Adapting Low Voltage Multi-Technology Walk Through
Viewing Angle
180 deg
Voltage Rating
24 VDC
Application
Cafeterias, Classrooms, Computer Rooms, Conference Rooms, Day Care Centers, Filing Rooms, Workspaces, Open Warehouses, Offices with Cubicles, Open Area, Restrooms, Stairwells, Storage Rooms, Executive, Open and Private Offices
Standard & Approvals
cULus Listed, ASHRAE 90.1, Title 24 Compliant, NOM Approved, cUL Listed
Minimum Order Qty
1
Order Interval
1
Amperage Rating
25 mA
Catalog ID
LEVOSC10-MWW
Color
True White
Connection Type
Wired
Control Output
24 VDC
Coverage
1000 sq-ft
Dimensions
4.2 in W x 1.57 in D
Lamp Type
LED
Material
Plastic
Mounting Type
Ceiling
