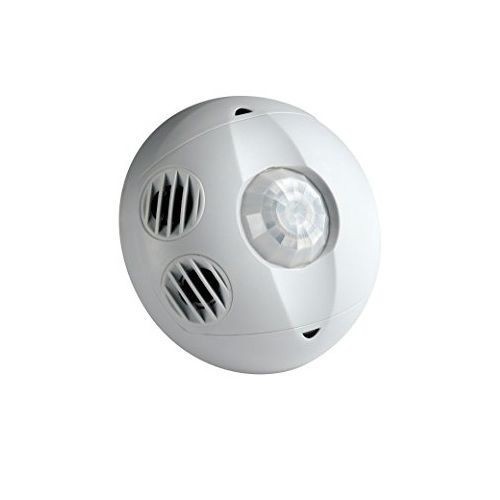

Leviton® OSC20-M0W Low Voltage Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing, Ceiling Mount
Leviton® OSC20-M0W Low Voltage Occupancy Sensor, 24 VDC, PIR/Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing, Ceiling Mount
SKU: LEVOSC20-M0W
Manufacturer Part Number: OSC20-M0W
UPC: 078477180136
Short Description
Features
- Small size installed sensor appears almost invisible
- Fast simple installation easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment
- Accurate, consistent switching occupant complaints are eliminated, lights are on when room is occupied, off when empty, annoying false Offs are minimized and lights on at night is eliminated
- Self-adapting an internal microprocessor continually analyzes, evaluates and adjusts settings, performance is kept at a maximum and user complaints are eliminated
- Maximum reliability, low cost all digital circuitry uses a minimum of components
- Non-volatile memory learned and adjusted settings saved in protected memory, power outages will not cause status loss
- Ambient light recognition the photocell prevents lights from turning on when room is adequately lit by natural light
Specification
| Lamp Type | LED |
|---|---|
| Material | Plastic |
| Mounting Type | Ceiling |
| Response Frequency | 32 |
| Temperature Rating | 0 to 40 deg C |
| Type | Low Voltage |
| Voltage Rating | 24 VDC |
| Color | Off-White |
| Standard & Approvals | RoHS Compliant, ANCE Compliant, ASHRAE Standard 90.1 Compliant, CEC Title 20/24, cULus 9034, FCC Compliant, NOM 057 |
| Application | Cafeterias, Classrooms, Computer Rooms, Conference Rooms, Day Care Centers, Filing Rooms, Workspaces, Open Warehouses, Offices With Cubicles, Open Areas, Restrooms, Stairwells, Storage Rooms, Executive, Open and Private Offices and Commercial Applications |
| Viewing Angle | 360 |
| Time Delay | 30 s to 30 min |
| Sensor Type | PIR/Ultrasonic |
| Coverage | 2000 |
| Control Output | Automatic ON/OFF |
| Connection Type | Wired |
| Dimensions | 4.2 in Dia x 1.55 in D |
| Amperage Rating | 25 mA |
