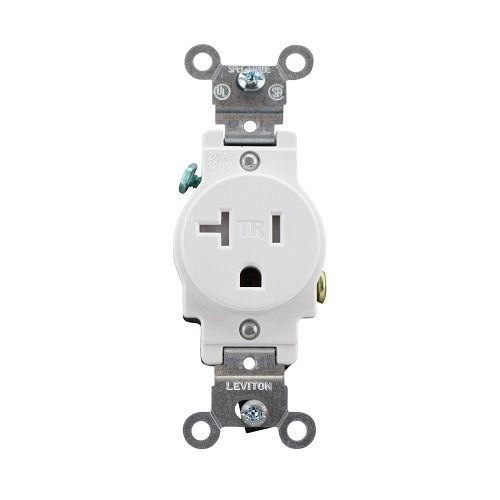

Leviton® T5020-W Duplex Self-Grounding Single Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Selected Leviton® T5020-W Duplex Self-Grounding Single Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Leviton® T5020-W Duplex Self-Grounding Single Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Documents

Short Description

Plug into safety with Leviton® line of tamper resistant receptacles. Leviton® makes it easy for you to comply with the current NEC mandate for TR Receptacles in all new residential housing. This requirement resultd from a Consumer Product Safety Commission study, that reported alleged injuries in the home caused each year by children attempting to insert foreign objects into receptacles. TR receptacles have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades.

Features

  • Manufactured to withstand the demands of commercial and institutional applications
  • Heavy duty brass power contacts for maximum conductivity and plug retention
  • Shallow design for maximum wiring room in box

Specification

Grade
Commercial/Specification
Material
Thermoplastic Nylon
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Back/Side Wired
Type
Self Grounding Tamper Resistant
Voltage Rating
125 VAC
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, ANSI (C-73), CSA Certified (File E152105), NOM (057), UL Listed (File E13399)
Amperage Rating
20 A
Dimensions
1.31 in L x 16 in W x 46 in H
Color
White
Enclosure
NEMA WD-6
Horsepower
1 hp
