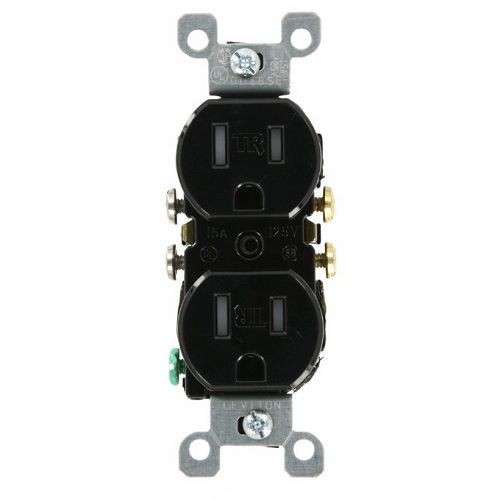

Leviton® T5320-E Duplex Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Selected T5320-ELeviton® T5320-E Duplex Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
T5320-ELeviton® T5320-E Duplex Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Leviton makes it easy for you to comply with the 2008 NEC mandate for TR receptacles in all new residential housing. This requirement resulted from a Consumer product safety Commission study that reported alleged injuries in the home caused each year by children attempting to insert foreign objects into receptacles. TR receptacles have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries. As a long-time manufacturer of tamper resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential and commercial Grades. As more states and municipalities adopt the 2008 NEC code, we expect it to have a major impact on your market. Although there is an increase in cost per product, it is negligible compared to the priceless value of protecting children. To smooth the transition and help you meet your new construction needs, we provide a handy cross-reference of standard and TR catalog numbers on the following page.

Features

  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • TR symbol on residential receptacles assures they meet the 2008 NEC requirement
  • TR selection includes residential and commercial grade receptacles
  • Heavy duty construction offers long, trouble-free service life
  • Grounding receptacle

Specification

Grade
Residential
Material
Thermoplastic
NEMA Rating
NEMA 5-15R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Color
Black
Dimensions
1.31 in L x 0.98 in W x 4.2 in H
Type
Duplex Tamper Resistant
Voltage Rating
125 VAC
Standard & Approvals
UL Listed, CSA 152105
Application
For new or renovated single- and multi-family housing, schools, libraries and childcare facilities
Terminal Type
Quickwire Push-In and Sided
Catalog ID
LEVT5320-E
