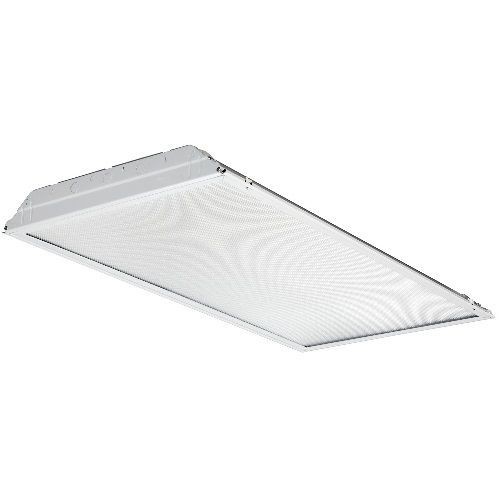

Lithonia Lighting® 2GTL 4 40L A19 EZ1 LP840 Rectangular Traditional Indoor Troffer, Static LED Lamp, 120 to 277 VAC, Steel Housing

Selected Lithonia Lighting® 2GTL 4 40L A19 EZ1 LP840 Rectangular Traditional Indoor Troffer, Static LED Lamp, 120 to 277 VAC, Steel Housing
Lithonia Lighting® 2GTL 4 40L A19 EZ1 LP840 Rectangular Traditional Indoor Troffer, Static LED Lamp, 120 to 277 VAC, Steel Housing

Documents

Short Description

The benefits of LED lighting get even better when that lighting comes with options to suit your needs and a price to suit your budget. The GTL series LED troffer is a specifiable, general-purpose recessed LED troffer that offers flexibility for budget-constrained spaces. The GT series LED recessed troffer's economical, solid-state lighting is ideal for new construction, renovation and retrofit opportunities. It is ideal for the broad range of applications where general-purpose fluorescent lighting currently prevails including offices, schools and commercial general ambient applications.

Features

  • Lighter weight fixture allows for safe, easy installation
  • Highly transmissive pattern #12 lens diffuses the light source without compromising output, pattern # 19 and satin white lens options also available
  • Long life LED, coupled with high-efficiency drivers, provide extended service life
  • eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker free, low current inrush, 89% efficiency and low EMI
  • Optional nLight embedded controls make each luminaire addressable allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors and photo controls, simply connect all the nLight enabled control devices and the GTL luminaires using standard Cat-5 cabling, unique plug and-play convenience as devices and luminaires automatically discover each other and self-commission
  • Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting
  • The step-level dimming option (SLD) allows the system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance
  • LED boards include plug-in connectors for easy of upgradeability
  • Suitable for direct insulation contact
  • The light engine delivers long life and excellent color to ensure a sound quality, low maintenance lighting installation
  • NO 12 pattern acrylic lens
  • Flush steel white door
  • Cold-rolled steel

Specification

Housing Material
Steel
Lamp Type
Static LED
Lens Type
Acrylic Glass
Mounting Type
Ceiling
Minimum Order Qty
1
Order Interval
1
Average Life
60000
Catalog ID
LIT2GTL440LA19EZ1LP840
Color Temperature
4000
Dimensions
48 in L x 24 in W x 3-1/2 in H
Recessed Trim Type
Grid
Series
2GTL
Type
Rectangular Traditional
Voltage Rating
120 to 277 VAC
Application
Classroom, Conference Room, Hospital, Open Office and Retail Applications
Standard & Approvals
CSA Certified, RoHS Compliant
