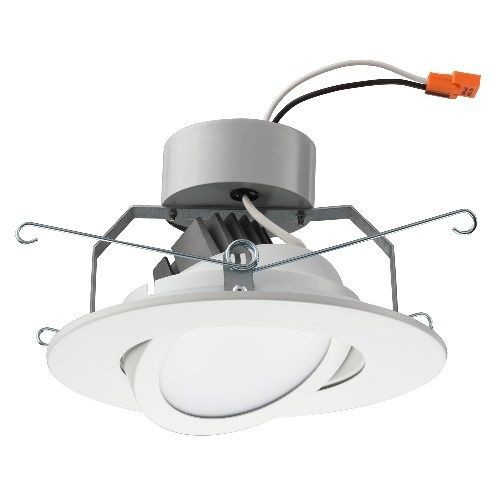

Lithonia Lighting® 6G1MW LED 40K 90CRI M6 Dimmable IC/Non-IC Retrofit LED Module, Static LED Lamp, 11 W Fixture, 120 VAC, Aluminum Housing
Lithonia Lighting® 6G1MW LED 40K 90CRI M6 Dimmable IC/Non-IC Retrofit LED Module, Static LED Lamp, 11 W Fixture, 120 VAC, Aluminum Housing
SKU: LIT6G1MWLED40K90CRIM6
Manufacturer Part Number: 6G1MW LED 40K 90CRI M6
UPC: 889804157291
Documents
Features
- The adjustable LED gimbal downlighting module is 80% more efficient than incandescent luminaries, performing for 35000 hr or more with exceptional energy efficiency and near zero maintenance
- Multiple trim finish options are available to pick the style that matches the decor for any office or home
- The LED gimbal is intended for sloped ceiling applications, grazing textured surfaces, wall washing, and highlighting artwork or other architectural features
- Retrofits into most existing recessed downlighting installations or new construction and remodel applications
- Spun steel gimbal reflectors with 180 deg of rotation and at least 35 deg of adjustable tilt in both directions
- Driver affixed to a static yoke to allow maximization of LED light engine rotation and pivot movements
- Diffused lens at end of mixing chamber to provide even light distribution for general illumination, equivalent to 50W incandescent flood lamp
- Wide flood beam angle at >90 deg CRI >90 equivalent to 50 W incandescent
- The LED module maintains at least 70% light output for 35000 hr
- Primary power disconnect provided for simple connection to a dedicated LED connector in the housing
- Dimming down to 15%
- Suitable for installation in standard-height rough-in sections
- E26 socket adapter and splice kit ships standard
- This enables easy installation or permanent conversion to an LED source for title 24 compliance
- Includes three friction clips to ensure easy installation
Specification
| Housing Material | Aluminum |
|---|---|
| Lamp Base | E26 |
| Lamp Type | LED |
| Lamp Wattage | 10.3 W |
| Lens Type | Diffused Glass |
| Light Color | Matte White |
| Lumens | 820 Lumens |
| Mounting Type | Ceiling |
| Number of Lamps | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 35000 hr |
| Color Rendering Index (CRI) | 90 CRI |
| Color Temperature | 4000 K |
| Recessed Trim Type | Gimbal |
| Type | Dimmable IC/Non-IC |
| Voltage Rating | 120 VAC |
| Series | 6G1 |
| Dimensions | 6-1/8 in L x 7-1/4 in W x 4-1/2 in H |
| Catalog ID | LIT6G1MWLED40K90CRIM6 |
