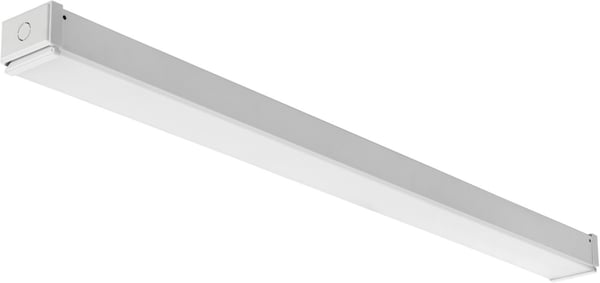

Lithonia Lighting® CLX L96 8000LM SEF FDL MVOLT GZ10 40K 80CRI WH Rectangular Standard Efficiency Linear Strip Light Fixture,) LED Lamp, 52.32 W Fixture, 120 to 277 VAC, High Gloss Baked White Polyester Housing

Pick Up Only
Selected IDW IMAGE 91614b0bb05f61cf6e49c041fa5bdb30751b26079c83b67dda2c47912b47c2f0 HR
IDW IMAGE 91614b0bb05f61cf6e49c041fa5bdb30751b26079c83b67dda2c47912b47c2f0 HR

Documents

Short Description

The CLX series from Lithonia Lighting® is a versatile, ultra-efficient LED strip lighting solution that can meet the challenges of your industrial, retail, warehousing and task lighting applications. Engineered to deliver up to 20000 Lumens and 160+ Lumens/W, you can enjoy 45% energy savings over a 2 lamp T8. Multiple lengths, lenses and mounting options put you in control of your application whether it be for performance, aesthetics or the newest technology.

Features

  • Designed for versatility, the CLX can address virtually any indoor lighting need
  • The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand alone fixture
  • Channel and cover are formed from code gauge cold rolled steel
  • Housing and lens end caps are injection molded plastic to provide a more architectural look and feel
  • The endcaps come standard with a 7/8 in knock out for continuous mounting but can be ordered without
  • Offered with acrylic lens and less lens configurations
  • Utilizes high output LEDs integrated on a two layer circuit board, ensuring cool running operation

Specification

Housing Material
Steel
Lamp Type
LED
Light Color
White
Mounting Type
Ceiling
Minimum Order Qty
1
Order Interval
1
Average Life
100000 hr
Color Rendering Index (CRI)
80
Color Temperature
4000 K
Voltage Rating
120 to 277 VAC
Standard & Approvals
A+ Certified, cCSAus Certified, DLC Listed, DLC QPL Listed
Dimensions
96 in L x 3.44 in W x 2.72 in H
Type
Rectangular Standard Efficiency
Fixture Wattage
52.32 W
Housing Finish
High Gloss Baked White Polyester
Application
Commercial, Retail, Manufacturing, Warehouse and Display Applications
Series
CLX
Catalog ID
LITCLXL968000LMSEFFDLMVO
Video
https://www.youtube.com/watch?v=3HcfSgRD3s0&feature=youtu.be
Lumens
8000 Lumens
Light Output
160 Lumens/W
Lens Type
Flat Acrylic Diffuser
