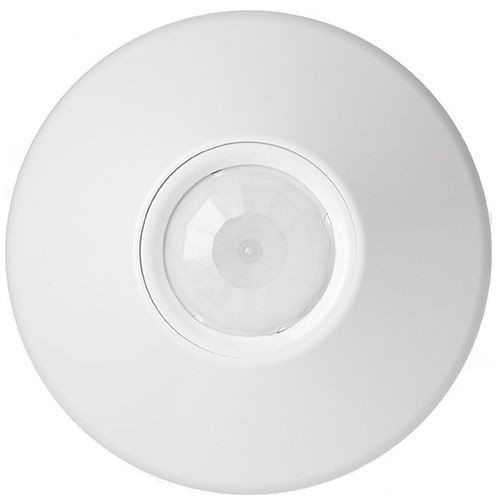

Sensor Switch™ CM 9 Low Voltage Ceiling Mount Occupancy Sensor, 12 to 24 VAC/VDC, Passive Infrared Sensor, 12 ft Coverage, 360 deg Viewing, Ceiling Mount

Selected Sensor Switch™ CM 9 Low Voltage Ceiling Mount Occupancy Sensor, 12 to 24 VAC/VDC, Passive Infrared Sensor, 12 ft Coverage, 360 deg Viewing, Ceiling Mount
Sensor Switch™ CM 9 Low Voltage Ceiling Mount Occupancy Sensor, 12 to 24 VAC/VDC, Passive Infrared Sensor, 12 ft Coverage, 360 deg Viewing, Ceiling Mount

Documents

Short Description

Ceiling mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. Available in low voltage and line voltage models, these sensors are capable of covering an entire private office or small room by themselves. Multiple low voltage sensors can also work together to supply the ideal solution for oddly shaped rooms or large open office areas. A line voltage sensor provides one relay for a single level control, while the 2-pole version provides a second relay for an additional level of control. For rooms with obstructions, these sensors are also offered with dual technology, which adds Microphonics™ detection to the passive infrared (PIR) detection.

Features

  • Digital PIR detection - excellent RF immunity
  • Push- button programmable, adjustable time delays, and multiple operating modes
  • 100 hr lamp burn-in timer
  • Convenient test mode
  • Green LED status indicator
  • Small motion 360 deg coverage pattern
  • No field calibration or sensitivity adjustments required
  • Suitable for indoor environments

Specification

Material
Plastic
Mounting Type
Ceiling
Sensor Type
PIR
Series
CM
Temperature Rating
14 to 160 deg F
Time Delay
30 sec to 30 min
Type
Low Voltage
Viewing Angle
360 deg
Voltage Rating
12 to 24 VAC/VDC
Application
Automotive and Parking, Government, Healthcare, Hospitality, Residential, Retail, Roadways, Bridges and Tunnels, Sports and Recreation, Transportation and Warehouses
Standard & Approvals
cULus Listed, RoHS Compliant
Color
Matte White
Connection Type
Wire
Coverage
12 ft
Dimensions
4.55 in Dia x 1.55 in D
Amperage Rating
4 mA
