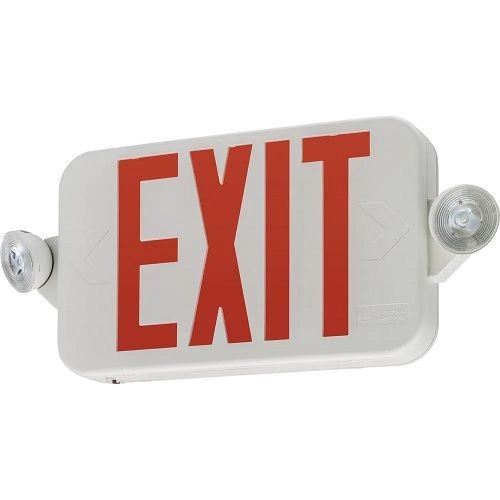

Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG HO RD M6 Round Head Emergency Light/Exit Combo With Remote Capacity, LED Lamp, 2.8 W Fixture, 120 to 277 VAC, White Housing, EXIT Legend

Selected Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG HO RD M6 Round Head Emergency Light/Exit Combo With Remote Capacity, LED Lamp, 2.8 W Fixture, 120 to 277 VAC, White Housing, EXIT Legend
Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG HO RD M6 Round Head Emergency Light/Exit Combo With Remote Capacity, LED Lamp, 2.8 W Fixture, 120 to 277 VAC, White Housing, EXIT Legend

Short Description

The new Lithonia Lighting® Basics™ ECRG is a red/green switchable emergency exit combo that gives ultimate versatility in the field. The ECRG contains an internal switch on the LED board that allows you to switch between red and green. This product comes standard three-face, which includes an extra face plate with red and green inserts to change a single face sign to a double face sign. The ECRG comes standard universal mount - top, end or back mounting with snap-out and snap-in chevrons, making it the most field-configurable, universal emergency exit combo on the market today. Built from the previous ECR, ECG and ECC platform, the new ECRG gives additional versatility but keeps the durability and dependability that has already been proven in the field.

Features

  • Internal toggle switch for red or green exit
  • Test switch and status indicator
  • UL indoor damp location 50 to 104 deg F (10 to 40 deg C) listed standard

Specification

Housing Finish
White
Housing Material
Thermoplastic
Lamp Type
LED
Lamp Wattage
0.75 W
Legend
EXIT
Legend Color
Red/Green
Mounting Type
Surface
Number of Heads
2
Number of Lamps
2
Power Source
3.6 V NiMH Rechargeable Battery
Series
ECRG Series
Type
Round Head
Voltage Rating
120 to 277 V
Application
Education, Government, Healthcare, Hospitality, House of Worship, Retail, Offices and Banks
Standard & Approvals
California Title 20, FCC Certified, NFPA 70/101, OSHA Approved, UL 924
Amperage Rating
0.05/0.03 A
Dimensions
16.46 in L x 2.05 in D x 7.24 in H
Average Life
10 years
Color Rendering Index (CRI)
80
Color Temperature
6200 K
Fixture Wattage
2.8 W
