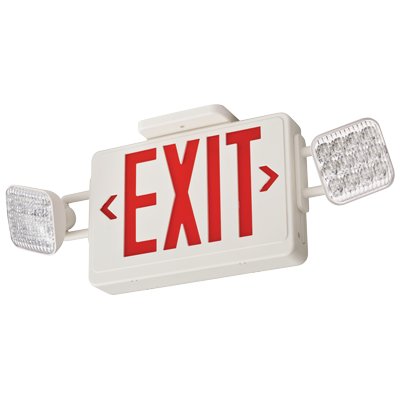

Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG HO SQ M6 Square Head Emergency Light/Exit Combo With Remote Capacity, LED Lamp, 4 W Fixture, 120/277 VAC, White Housing, EXIT Legend

Selected ECRG SQ M6Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG SQ M6 Square Head Emergency Light/Exit Combo, LED Lamp, 3.5 W Fixture, 120/277 VAC, White Housing, EXIT Legend
ECRG SQ M6Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG SQ M6 Square Head Emergency Light/Exit Combo, LED Lamp, 3.5 W Fixture, 120/277 VAC, White Housing, EXIT Legend

Documents

Short Description

The new Lithonia Lighting® Basics™ ECRG is a red/green switchable emergency exit combo that gives ultimate versatility in the field. The ECRG contains an internal switch on the LED board that allows you to switch between red and green. This product comes standard three-face, which includes an extra face plate with red and green inserts to change a single face sign to a double face sign. The ECRG comes standard universal mount - top, end or back mounting with snap-out and snap-in chevrons, making it the most field-configurable, universal emergency exit combo on the market today. Built from the previous ECR, ECG and ECC platform, the new ECRG gives additional versatility but keeps the durability and dependability that has already been proven in the field.

Features

  • Internal toggle switch for red or green exit
  • Test switch and status indicator
  • UL indoor damp location 50 to 104 deg F (10 to 40 deg C) listed standard

Specification

Power Source
3.6 V NiMH Rechargeable Battery
Series
ECRG Series
Type
Square Head
Voltage Rating
120/277 VAC
Application
Education, Government, Healthcare, Hospitality, House of Worship, Retail, Offices and Banks
Standard & Approvals
California Title 20, FCC Certified, NFPA 70/101, OSHA Approved, UL 924
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=vc9Ul4J8-uk
Amperage Rating
0.03/0.02 A
Average Life
10 years
Catalog ID
LITECRGHOSQM6
Color Rendering Index (CRI)
75
Color Temperature
6200 K
Dimensions
19.09 in W x 4.33 in D x 7.95 in H
Fixture Wattage
4 W
Housing Finish
White
Housing Material
Thermoplastic
Lamp Type
LED
Lamp Wattage
1 W
Legend
EXIT
Legend Color
Red/Green
Mounting Type
Surface
Number of Heads
2
Number of Lamps
2
