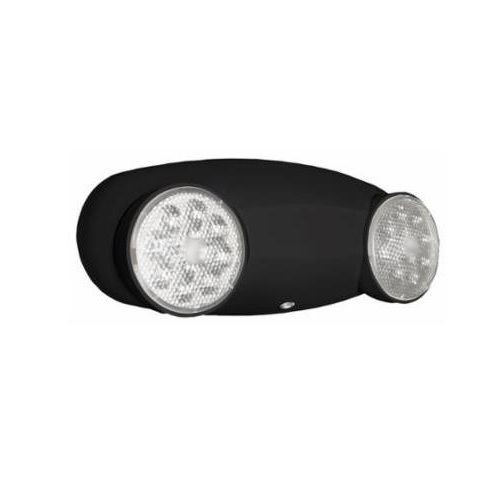

Lithonia Lighting® Quantum® ELM2 LED B M12 Self-Contained Emergency Lighting Unit, 1.5 W LED Lamp, 120 to 277 VAC, 2 Heads, Thermoplastic
Lithonia Lighting® Quantum® ELM2 LED B M12 Self-Contained Emergency Lighting Unit, 1.5 W LED Lamp, 120 to 277 VAC, 2 Heads, Thermoplastic
SKU: LITELM2-LED-B-M12
Manufacturer Part Number: ELM2 LED B M12
UPC: 745975850242
Short Description
Features
- Provides a minimum of 90 minutes of illumination for the rated wattage upon loss of AC power
- White, compact, low-profile contemporary design
- Engineering grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof
- Two LED lamp heads with 12 parallel 3.6 VAC white LEDs in each
- The typical life of the exit LED lamp is 10 years
- Unique track and swivel arrangement permits full range of direction of lamp head adjustment, universal J-box mounting pattern, tool less access for maintenance, conduit entry position on top of unit
- UL94V-O flame rating, UV-stable resin resists discoloration from natural and man-made light sources
- Low profile, integrated test switch/pilot light, easily visible bright red status indicator
- Current limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs
- Short-circuit protection current-limiting charger circuitry protects printed circuit board from shorts, thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
- Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature range
- Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages, prevents over/undercharging that shortens battery life and reduces capacity
- Filtered charger input minimizes charge voltage ripple and extends battery life
- AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge
Specification
| Lamp Type | LED |
|---|---|
| Material | Thermoplastic |
| Mounting Type | Surface/Wall |
| Number of Heads | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Black |
| Voltage Rating | 120 to 277 VAC |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 924, NEC Compliant, NFPA 101, OSHA Approved |
| Application | For applications requiring attractive unit equipment with quick installation and general purpose applications |
| Type | Self-Contained |
| Series | ELM2 |
| Power Source | NiCd Battery |
| Fixture Wattage | 12 W |
| Dimensions | 4-1/4 in H x 10-1/4 in W x 2-3/4 in D |
| Catalog ID | LITELM2-LED-B-M12 |
| Amperage Rating | 0.04/0.03 A |
| Lens Type | Fully Adjustable/Polycarbonate |
| Lamp Wattage | 1.5 W |
