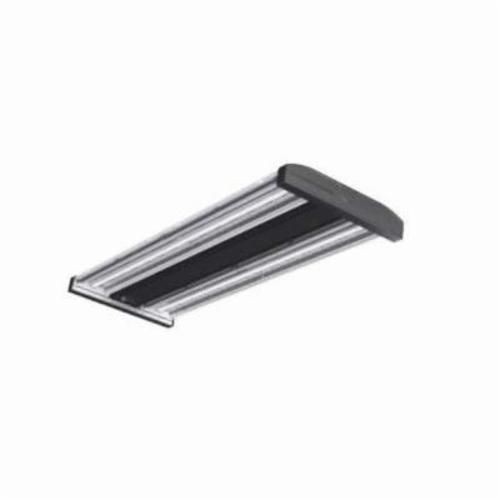

Lithonia Lighting® I-BEAM® IBL 18L WD LP740 DLC Wide Distribution High Bay Lighting, Static LED Lamp, 120 to 277 VAC, Gloss/White/Textured Dark Gray Housing
Lithonia Lighting® I-BEAM® IBL 18L WD LP740 DLC Wide Distribution High Bay Lighting, Static LED Lamp, 120 to 277 VAC, Gloss/White/Textured Dark Gray Housing
SKU: LITIBL18LWDLP740DLC
Manufacturer Part Number: IBL-18L-WD-LP740-DLC
UPC: 753573372264
Documents
Short Description
Features
- Ideal one-for-one replacement of conventional HID and fluorescent high bay systems
- Lightweight aluminum heat sink designed to perform in ambient temperatures up to 55 deg C with lumen droop less than fluorescent due to precision thermal engineering for maximum naturally convective cooling
- Structural elements such as the channel and end caps are fabricated from steel for maximum rigidity
- Hard-tooled reflectors, utilizing reflective Alanod® MIRO-5® aluminum, for precise and repeatable photometry
- Wireguard attachment points provided
- Narrow and wide distributions available to meet both horizontal and vertical light level requirements
- 0.90 power factor and 10kA/10kV level of surge protection is standard
- XPoint™ Wireless technology creates a mesh network to ensure communication between fixtures, sensors and wall stations facility-wide
- This option provides superior lighting management capabilities including granular control, configuration and custom grouping for increased energy savings
- Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant) monopoint
- Surface mounting not recommended without optional surface mounting bracket, to maintain high ambient listing, fixture should be mounted at a minimum plenum height of 24 in
- Damp location listed, suitable for ambient temperatures from -40 deg F (-40 deg C) to 131 deg F (55 deg C) when suspended 24 in from ceiling
- Wide distribution
- Compatible with 4-lamp T5HO, 6-lamp T8, 400W HID
Specification
| Housing Material | Steel |
|---|---|
| Lamp Type | LED |
| Lumens | 18000 Lumens |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 60000 hr |
| Color Temperature | 4000K |
| Voltage Rating | 120 to 277 VAC |
| Application | For warehousing, manufacturing, gymnasiums and other large indoor spaces with mounting heights up to 60 ft |
| Dimensions | 45 in L x 15-3/4 in W x 3-1/4 in D |
| Color Rendering Index (CRI) | CRI 70 |
| Lamp Wattage | 197 W |
| Standard & Approvals | CSA Certified, DLC Listed |
| Series | IBL |
| Catalog ID | LITIBL18LWDLP740DLC |
| Housing Finish | Gloss White |
