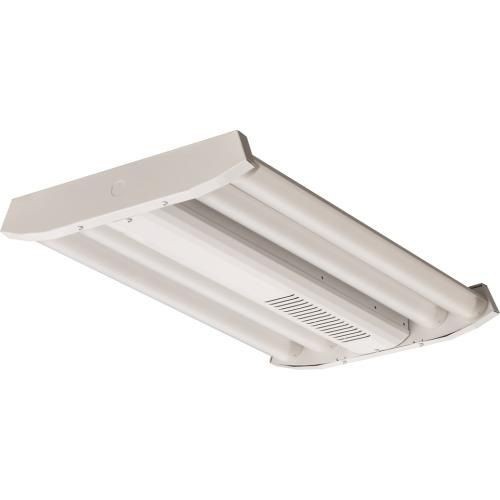

Lithonia Lighting® IBG 15L MVOLT 5K High Bay Fixture, (4) LED Lamp, 120 to 277 VAC, White Housing

Selected Lithonia Lighting® IBG 15L MVOLT 5K High Bay Fixture, (4) LED Lamp, 120 to 277 VAC, White Housing
Lithonia Lighting® IBG 15L MVOLT 5K High Bay Fixture, (4) LED Lamp, 120 to 277 VAC, White Housing

Documents

Short Description

The I-BEAM® family of LED high bays from Lithonia Lighting® is among the most recognized and respected brands in the industry, with a proven track record of value and performance. This legacy continues with the IBG LED. The versatile I-BEAM® IBG LED high bay boasts a single base platform design with the ability to select performance, optics and housing options, taking IBG from basic applications to complex environments, including unconditioned spaces. The result is the maximum performance you need at the lowest possible cost. You no longer have to figure out 'which fixture', only 'what spec' you need.

Features

  • Snap-fit IP5X dust resistant diffuse lens standard
  • 6 kV surge protection, standard
  • 97 W at 120 VAC, 95 W at 277 VAC wattage

Specification

Housing Finish
White
Housing Material
Steel
Lamp Type
LED
Lamp Wattage
95/97 W
Lumens
15000 Lumens
Number of Lamps
4
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=Xthnsu9UT7w
Average Life
100000
Catalog ID
LITIBG15LMVOLT5K
Color Temperature
5000
Dimensions
25.6 in L x 15.51 in W x 2.68 in D
Enclosure Type
IP5X
Series
IBG
Voltage Rating
120 to 277 VAC
Application
Warehousing, Manufacturing, Gymnasiums and Other Large Indoor Spaces with Mounting Heights Up to 60 ft
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, CSA Certified, DLC Listed
