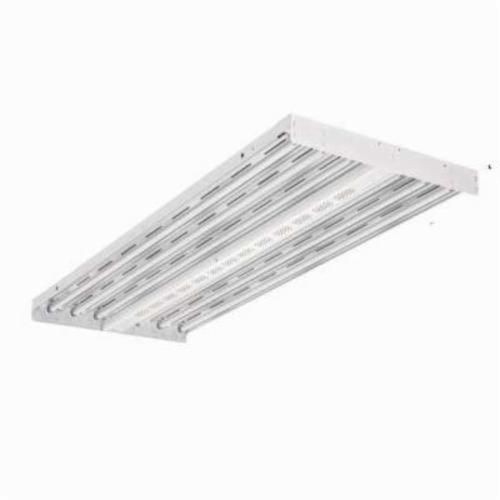

Lithonia Lighting® I-BEAM® IBZ 454L GEB10PS90 Narrow Distribution High Bay Lighting, (4) Fluorescent/T5SHO Lamp, 120 to 277 VAC, High Gloss Baked White Enamel Housing

Selected IBZ-454L-GEB10PS90Lithonia Lighting® I-BEAM® IBZ 454L GEB10PS90 Narrow Distribution High Bay Lighting, (4) Fluorescent/T5SHO Lamp, 120 to 277 VAC, High Gloss Baked White Enamel Housing
IBZ-454L-GEB10PS90Lithonia Lighting® I-BEAM® IBZ 454L GEB10PS90 Narrow Distribution High Bay Lighting, (4) Fluorescent/T5SHO Lamp, 120 to 277 VAC, High Gloss Baked White Enamel Housing

Documents

Short Description

The I-BEAM® IBZ is an energy-saving fluorescent high bay solution that is an ideal one-for-one replacement of common metal halide high bay systems. Its configurable design supports many options and accessories that would satisfy almost any high bay application. Typical applications include manufacturing, warehousing, institutional and retail facilities. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.

Features

  • The highly configurable design of the IBZ high bay allows for a multitude of fixture options that can either be factory- or field-installed
  • The easy access ballast channel houses the proprietary cool running plus technology, which is the most advanced fluorescent ballast technology available for fluorescent high bay lighting
  • It has independent lamp operation to reduce lamp maintenance costs, is fast-starting to improve occupancy sensing, and a proprietary thermal-sensing processor that allows for reliable operation in environments where ambient temperatures can reach up to 155 deg F (68 deg C)
  • In addition to the reliable operation of IBZ fixtures, the reflectors tightly control the distribution of light and effectively manage lamp heat to increase the overall efficiency
  • The result is superior optics in either narrow distribution for aisles, or wide distribution for general lighting
  • Installation is made quick and easy with IBZ hanging accessories such as the aircraft cable and single-point mounting bracket
  • Lamp holders (sockets) are manufactured from PBT (polybutylene terephthalate) material for increased chemical resistance along with secure positioning rotating collars and enclosed contacts
  • Access plate on the back of the channel housing allows quick and easy wiring
  • Channel is high-gloss white baked enamel, F54T5HO/841 lamp included
  • Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance
  • Narrow distribution is ideal for narrow or aisle lighting applications and features precision formed segmented optics utilizing specular aluminum reflector
  • Provides 95% reflectivity and warranted for 25 years, wide distribution includes high reflectance white finish for general or open areas
  • Thermally protected, resetting, Class P, HPF, A sound-rated electronic ballast, AWM TFM or THHN wire used throughout rated for required temperatures, ballast disconnect (BDP) is standard unless EL14 or cord set is requested
  • Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant) monopoint, surface mounting not recommended without optional surface mounting bracket
  • Narrow distribution, <5% uplight, no shielding

Specification

Housing Finish
White Enamel
Housing Material
Steel
Insulation Type
Class P
Lamp Type
Fluorescent
Lamp Wattage
54 W
Mounting Type
Suspended
Number of Lamps
4
Series
IBZ
Type
High Output
Voltage Rating
120 to 277 VAC
Ballast Type
Electronic
Includes
Lamp
Dimensions
48-1/6 in L x 13-1/4 in W x 2-3/8 in D
Standard & Approvals
UL 1598 Listed, CSA 250.0-08 for 25C Certified
Application
Manufacturing, Warehousing, Commercial and Industrial Facilities
