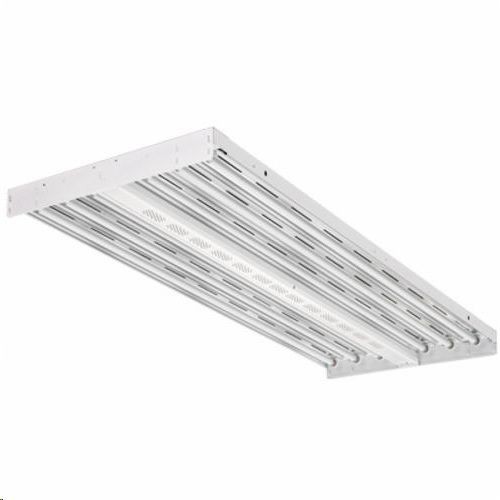

Lithonia Lighting® IBZ 654L WD HVOLT GEB10PS90 Wide Distribution High Bay Fixture With Lamp, (6) T5HO Fluorescent Lamp, 347 to 480 VAC, White Housing
Lithonia Lighting® IBZ 654L WD HVOLT GEB10PS90 Wide Distribution High Bay Fixture With Lamp, (6) T5HO Fluorescent Lamp, 347 to 480 VAC, White Housing
SKU: LITIBZ654LWDHVOLTGEB10PS
Manufacturer Part Number: IBZ 654L WD HVOLT GEB10PS90
UPC: 753573861249
Short Description
Features
- Without shielding
- Proprietary Z-strip channel that allows quick ballast access
- Superior thermal management and optical design
- State of the art T5HO lamp and ballast system featuring Cool running Plus™ Technology
- Superior optics are highly efficient and provide precise control of light
- Cooling vents aid in the thermal management of both ballast and lamps
- Rigid design maintains tight specifications on critically spaced components
- Proprietary channel cover allows for quick and easy ballast access with no fasteners to drop or lose, rolled edges reduce chance for cut wires
- Steel side rails protect the reflector from damage and the installer from exposure to sharp edges during handling
- Flat low profile design reduces space occupancy on trucks and lifts, its also allows for less packaging resulting in less jobsite material to clean up and recycle
- Segmented reflectors have multiple breaks that add strength to the reflector and provide precise control of light distribution
- The I-BEAM® IBZ is an energy saving fluorescent high bay solution that is an ideal for replacement of common metal halide high bay systems
- Its configurable design supports many options and accessories that would satisfy almost any high bay applications
- Certain airborne contaminants can diminish integrity of acrylic
- Wide distribution, <5% uplight
- T5 electronic, 1.0 BF and programmed rapid start
- F54T5HO/841 lamp color
Specification
| Housing Finish | White |
|---|---|
| Housing Material | Steel |
| Insulation Type | Class P |
| Lamp Base Type | Bi-Pin Medium |
| Lamp Type | T5HO Fluorescent |
| Lamp Wattage | 54 W |
| Mounting Type | Pendant/Suspended |
| Number of Lamps | 6 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Ballast Type | Electronic |
| Voltage Rating | 347 to 480 VAC |
| Application | Gymnasium, Manufacturing and Warehouse/Storage, Institutional, Retail Facilities and Damp Locations |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog ID | LITIBZ654LWDHVOLTGEB10PS |
| Type | Wide Distribution |
| Series | IBZ |
| Dimensions | 48-1/16 in L x 18-1/8 in W x 2-3/8 in D |
