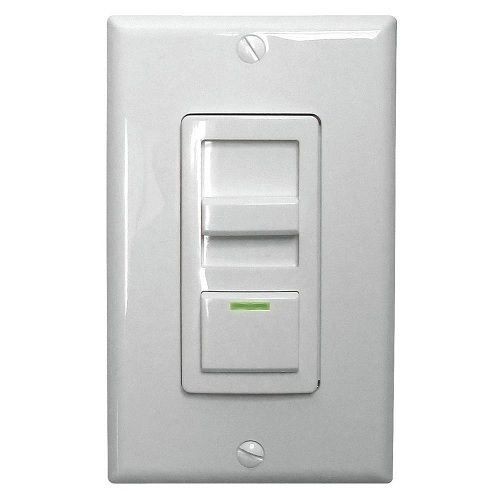

Synergy Lighting® ISD BC 120/277 WH M10 3-Way Wallstation Wallbox Dimmer, 120/277 VAC, 1 Poles, On/Off Operation, White

Synergy Lighting® ISD BC 120/277 WH M10 3-Way Wallstation Wallbox Dimmer, 120/277 VAC, 1 Poles, On/Off Operation, White
SKU: LITISDBC120/277WHM10
Manufacturer Part Number: ISD BC 120/277 WH M10
UPC: 784231152065
Documents
Features
- Connects directly to upto 80 compatible four-wire dimming ballasts with Class 2 low voltage control wire
- Photocell automatically maintains a constant preset lighting level
- Dual-voltage
- Integral RFI noise supression
- Deration required in 120 VAC multi-gang dimmer installations
- No derating is required on 277 volt units
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Type | Fluorescent |
| Mounting Type | Wall |
| Number Of Poles | 1 |
| Operation Mode | On/Off |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | LITISDBC120/277WHM10 |
| Color | White |
| Control | Linear Preset Slide |
| Voltage Rating | 120/277 VAC |
| Standard & Approvals | UL Listed, CSA Certified, NOM Certified |
| Dimensions | 4.15 in H x 2.12 in W x 1.41 in D |
| Application | Architectural Dimming Control, Multi-Gang and Retrofit |
| Type | 3-Way Wallstation |
| Power Rating | 1200 W |
