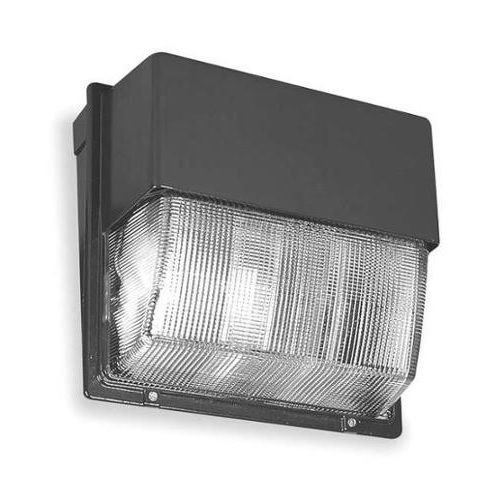

Lithonia Lighting® TWH 250M TB SCWA LPI Outdoor Wallpack, (1) HID Lamp, 120/208/240/277 VAC, Dark Bronze Housing
Selected Lithonia Lighting® TWH 250M TB SCWA LPI Outdoor Wallpack, (1) HID Lamp, 120/208/240/277 VAC, Dark Bronze Housing
Lithonia Lighting® TWH 250M TB SCWA LPI Outdoor Wallpack, (1) HID Lamp, 120/208/240/277 VAC, Dark Bronze Housing
SKU: LITTWH-250M-TB-SCWA-LPI
Manufacturer Part Number: TWH 250M TB SCWA LPI
Documents
Features
- The easy-to-install design makes it the smart choice for building-mounted doorway and pathway illumination for nearly any facility
- Corrosion-resistant external hardware includes slotted hex-head fasteners
- Reflector is specular anodized aluminum
- Refractor is prismatic borosilicate glass which is sealed and gasketed to inhibit the entrance of outside contaminants
- Porcelain, horizontally oriented, single-ended bayonet base socket for 35W low pressure sodium
- Back housing is separated from front housing, eliminating ballast weight and promoting easy handling
- 8 to 25 ft mounting
- Multi-tap ballast-Prewired 277 volt
- Super CWA pulse start ballast
Specification
| Housing Finish | Dark Bronze |
|---|---|
| Housing Material | Aluminum |
| Lamp Base | E39 Mogul |
| Lamp Type | HID |
| Mounting Type | Surface |
| Number of Lamps | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Ballast Type | Pulse Start |
| Catalog ID | LITTWH-250M-TB-SCWA-LPI |
| Dimensions | 15-3/4 in H x 16-1/4 in W x 8 in D |
| Enclosure Type | IP65 |
| Fixture Wattage | 250 W |
| Series | TWH |
| Voltage Rating | 120/208/240/277 VAC |
| Application | Outdoor Storage Areas, Warehouse, Factory Perimeters, Loading Docks and Light Commercial |
| Standard & Approvals | UL Listed, CSA/NOM Certified, RoHS Compliant |
| Includes | Lamp |
