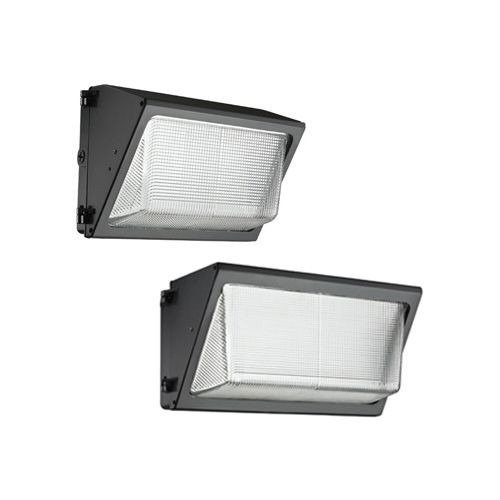

Lithonia Lighting® TWR1-LED-3-50K-MVOLT-PE TWR1 LED Wallpack, (3) LED Lamp, 54 W Fixture, 120 to 277 VAC
Lithonia Lighting® TWR1-LED-3-50K-MVOLT-PE TWR1 LED Wallpack, (3) LED Lamp, 54 W Fixture, 120 to 277 VAC
SKU: LITTWR1LED350KMVOLTPEM2
Manufacturer Part Number: TWR1-LED-3-50K-MVOLT-PE
UPC: 820476368745
Documents
Features
- 530 mA drive current
- MVOLT photo control
- The TWR1 LED combines traditional wall pack design with high-output LEDs to provide an energy efficient, low maintenance LED wall pack suitable for replacing up to 320 W MH fixtures
- The traditional shape helps maintain building aesthetics when replacing only a portion of your building's wall packs
- Rugged cast aluminum housing with bronze polyester powder paint for lasting durability
- Door is hinged on the side so door swings out of the way during installation and service
- Castings are sealed with a one-piece gasket to inhibit the entrance of external contaminants
- TWR1 LED 1 has 6 kV surge protection
- High-performance LEDs maintain up to 87% of light output at 100000 hr of service life
- Prismatic glass lens designed for superior lighting distribution, uniformity and fixture spacing
- Designed for wall mounting above four feet from ground
- Housing is configured for mounting directly over a standard 4 in outlet box (by others) or for surface wiring via any of three convenient 1/2 in threaded conduit entry hubs
Specification
| Housing Finish | Bronze |
|---|---|
| Housing Material | Rugged-Cast Aluminum |
| Lamp Type | LED |
| Lens Type | Glass |
| Lumens | 4900 Lumens |
| Mounting Type | Wall |
| Number of Lamps | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.24 to 0.56 A |
| Average Life | 100000 hr |
| Ballast Type | Electronic |
| Catalog ID | LITTWR1LED350KMVOLTPEM2 |
| Color Rendering Index (CRI) | 87 |
| Color Temperature | 5000K |
| Dimensions | 9 in H x 12-15/16 in W x 7-1/2 in D |
| Fixture Wattage | 54 W |
| Series | TWR1 LED |
| Voltage Rating | 120 to 277 VAC |
| Application | For outdoor applications such as carports, loading areas, driveways and parking areas |
| Standard & Approvals | UL Listed |
