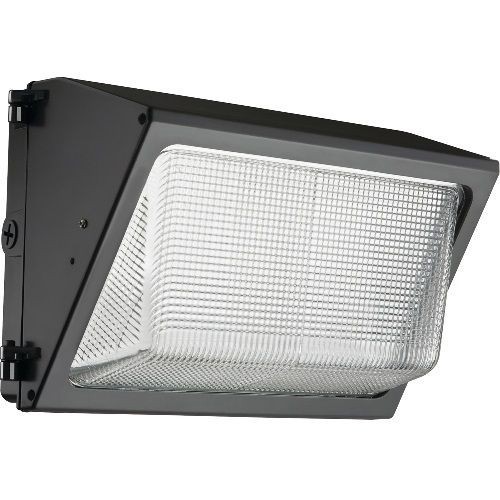

Lithonia Lighting® TWR1 LED P2 40K MVOLT DDBTXD M2 Wallpack, LED Lamp, 28 W Fixture, 120 to 277 VAC, Textured Dark Bronze Housing

Selected Lithonia Lighting® TWR1 LED P2 40K MVOLT DDBTXD M2 Wallpack, LED Lamp, 28 W Fixture, 120 to 277 VAC, Textured Dark Bronze Housing
Lithonia Lighting® TWR1 LED P2 40K MVOLT DDBTXD M2 Wallpack, LED Lamp, 28 W Fixture, 120 to 277 VAC, Textured Dark Bronze Housing

Short Description

The popular TWR1 luminaire is now available with long lasting, energy efficient LED technology. featuring a classic dayform, the TWR1 LED offers a traditional appearance and is powered by advanced LED's. The TWR1 LED luminaire is powerful yet energy efficient, capable of replacing up to a 250 W metal halide luminaire while saving up to 86% in energy costs. Offering an expected service life of more than 20 years, the TWR1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies.

Features

  • Rugged cast aluminum housing with bronze polyester powder paint for lasting durability
  • Door is hinged on the side so door swings out of the way during installation and service
  • Castings are sealed with a 1-piece gasket to inhibit the entrance of external contaminants
  • All luminaires have 6 kV surge protection

Specification

Housing Finish
Dark Bronze
Lamp Type
LED
Mounting Type
Wall
Voltage Rating
120 to 277 VAC
Average Life
100000
Color Rendering Index (CRI)
80
Color Temperature
4000
Fixture Wattage
28 W
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, IESNA LM-79, LM-80, UL, cUL, DLC Listed
Application
Education, Hospitality, Offices, Banks, Carports, Loading Areas, Driveways and Parking Areas Applications and Wet Locations
Series
TWR1 LED
Lumens
3442 Lumens
Lens Type
Small Prismatic Glass
Housing Material
Cast Aluminum
Dimensions
9 in H x 12-15/16 in W x 7-1/2 in D
Amperage Rating
0.1/0.12/0.13/0.23 A
