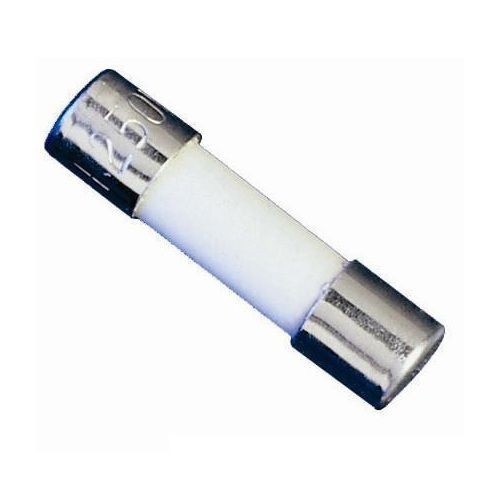

Littelfuse® POWR-GARD® 314030P Fast Acting Cartridge Fuse, 30 A, 250 VAC, 400 A Interrupt, Class: H, Cartridge Body

Selected Littelfuse® POWR-GARD® 314030P Fast Acting Cartridge Fuse, 30 A, 250 VAC, 400 A Interrupt, Class: H, Cartridge Body
Littelfuse® POWR-GARD® 314030P Fast Acting Cartridge Fuse, 30 A, 250 VAC, 400 A Interrupt, Class: H, Cartridge Body

Documents

Short Description

For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • Available in cartridge and axial lead format and with various forming dimensions
  • 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings
  • Ideal for applications where high current loads are expected
  • Nickel-plated brass cap
  • Lead free
  • -55 to 125 deg C of operating temperature
  • 400 A at 125 VAC Interrupt rating
  • 1 hr maximum at 1.35 4 hr maximum at 100% of response time

Specification

Interrupt Rating
400 A
Material
Ceramic
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Amperage Rating
30 A
Body Size
1/4 in Dia x 1-1/4 in L
Body Style
Cylindrical
Class
H
Series
314
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
250 VAC
Application
Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Standard & Approvals
Standard 248-6 UL Listed, RoHS Complaint
Catalog ID
L-F314030P
