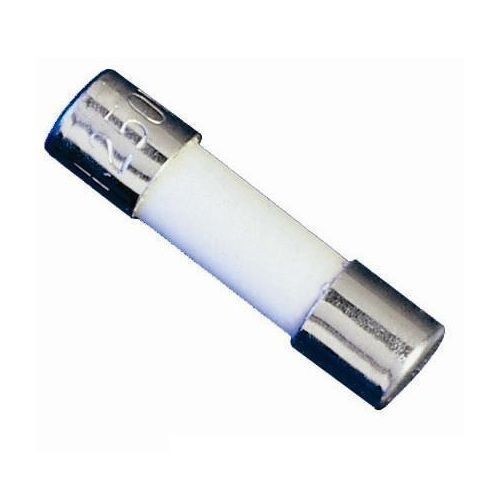

Littelfuse® POWR-GARD® Slo-Blo® 326.500P Time Delay Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class: G, Cartridge Body

Selected Littelfuse® POWR-GARD® Slo-Blo® 326.500P Time Delay Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class: G, Cartridge Body
Littelfuse® POWR-GARD® Slo-Blo® 326.500P Time Delay Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class: G, Cartridge Body

Documents

Short Description

For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • Lead free
  • 55 to 125 deg C Operating Temperature
  • 3AB Fuse size
  • Available in cartridge and axial lead format and with various forming dimensions
  • 10 kA at 125 VAC interrupt rating
  • 4 hr minimum at 1 1 hr maximum at 1.35 5 sec minimum and 30 sec maximum at 200%

Specification

Interrupt Rating
10 kA
Material
Ceramic
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Amperage Rating
0.5 A
Body Style
Cylindrical
Terminal Type
Ferrule
Voltage Rating
250 VAC
Type
Slow Blow Time Delay
Series
326
Class
G
Catalog ID
L-F326.500P
Body Size
1/4 in Dia x 1-1/4 in L
Standard & Approvals
UL File No. E10480, CSA File No. 29862, CE Certified, RoHS Compliant
Application
For used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
