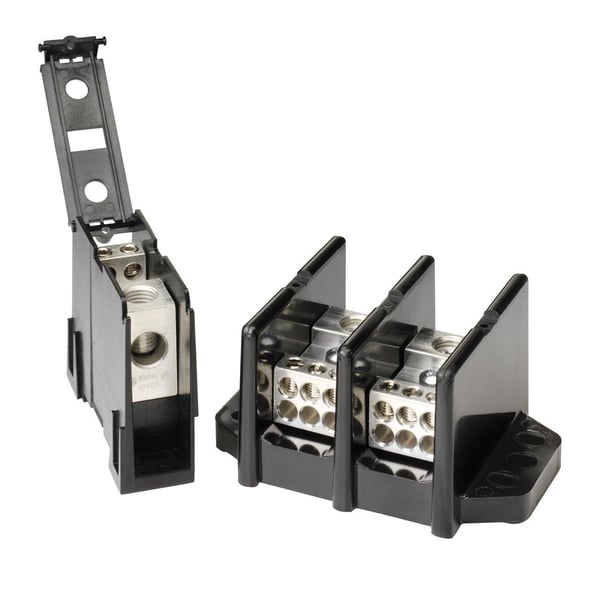

Littelfuse® 0LD335543Z LD Series Splicer Terminal Blocks, 600 VAC, 310 A, 3 Poles, 14 to 2/0 AWG Wire, Phenolic/Thermoplastic
Littelfuse® 0LD335543Z LD Series Splicer Terminal Blocks, 600 VAC, 310 A, 3 Poles, 14 to 2/0 AWG Wire, Phenolic/Thermoplastic
SKU: L-FLD33554-3
Manufacturer Part Number: 0LD335543Z
UPC: 079458972351
Documents
Features
- POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits
- Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material
- They also protect personnel from accidentally contacting energized connectors
Specification
| Series | LD Series |
|---|---|
| Number Of Poles | 3 |
| Secondary Connection/Pole | 2 |
| Voltage Rating | 600 VAC |
| Primary Connections/Pole | 1 |
| Wire Size | 14 to 2/0 AWG |
| Type | Splicer Terminal |
| Material | Phenolic/Thermoplastic |
| Amperage Rating | 310 A |
