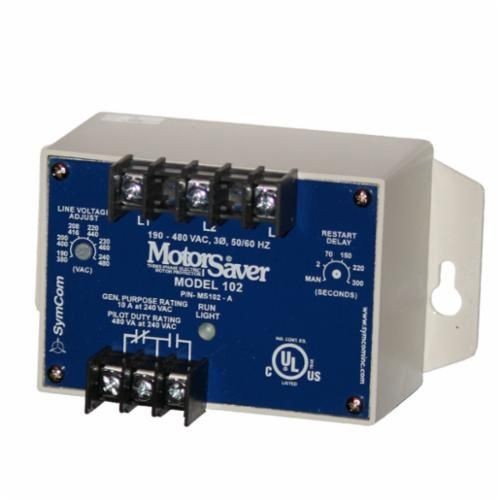

Littelfuse® Symcom 102A 3-Phase Phase Monitoring Relay, 190 to 480 VAC, SPDT Form C Contact

Selected Littelfuse® Symcom 102A 3-Phase Phase Monitoring Relay, 190 to 480 VAC, SPDT Form C Contact
Littelfuse® Symcom 102A 3-Phase Phase Monitoring Relay, 190 to 480 VAC, SPDT Form C Contact

Documents

Short Description

The 102A is a 3-phase, auto-ranging, dual-range voltage monitor that protects 190-600VAC, 50/60Hz motors regardless of size. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically selects between the 200V and 400V range. A unique microcontroller-based voltage and phase-sensing circuit constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels. The Model 102A includes advanced single LED diagnostics. Five different light patterns distinguish between faults and normal conditions.

Features

  • 12 to 18 AWG wire
  • -40 to 70 deg C operating temperature
  • 7 in-lb torque

Specification

Frequency Rating
50/60 Hz
Mounting Type
Threaded
Minimum Order Qty
1
Order Interval
1
Catalog ID
L-F102A
Contact Configuration
SPDT/Form C
Dimensions
2.93 in H x 5.27 in W x 2.95 in D
Series
102A
Trip Delay
Fixed Low Voltage
Voltage Rating
190 to 480 VAC
Standard & Approvals
UL508 Listed, CE, CSA Certified
