Littelfuse® POWR-GARD® 216.630P Fast Acting Cartridge Fuse, 0.63 A, 250 VAC, 1.5 kA Interrupt, Class: CD, Cartridge Body

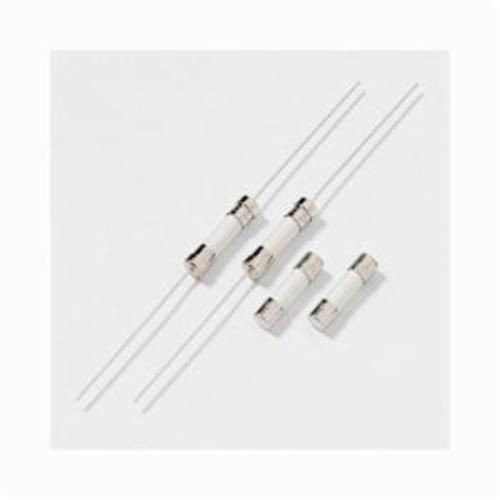

Selected 2163.15PLittelfuse® POWR-GARD® 216.063P Fast Acting Cartridge Fuse, 0.063 A, 250 VAC, 1.5 kA Interrupt, Class: CC, Cartridge Body
2163.15PLittelfuse® POWR-GARD® 216.063P Fast Acting Cartridge Fuse, 0.063 A, 250 VAC, 1.5 kA Interrupt, Class: CC, Cartridge Body

Documents

Short Description

For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • Designed to International (IEC) Standards for use globally
  • Meets the IEC 60127-2, Sheet 2 specification for fast acting fuses
  • Lead free
  • Nickel-plated brass cap, tin plated copper leads
  • -55 deg C to 125 deg C operating temperature
  • 60 min minimum at 150%, 30 min maximum at 210%, 0.01 sec minimum and 2 sec maximum at 275%, 0.003 sec min and 0.3 sec maximum at 400%, 0.02 sec maximum at 1000% response time

Specification

Interrupt Rating
1.5 kA
Material
Ceramic
Mounting Type
Holder
Series
216
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
250 VAC
Application
For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Standard & Approvals
IEC 60127-2, CSA Certified, CE Certified, cRUus Listed, UL 248-4
Amperage Rating
0.63 A
Body Size
5.2 mm Dia x 20 mm L
Body Style
Cylindrical
Class
CD
