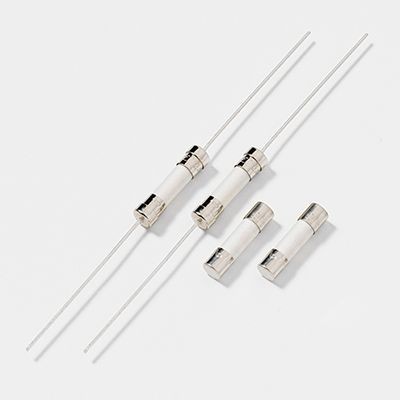

Littelfuse® POWR-GARD® 216002P Fast Acting Cartridge Fuse, 2 A, 250 VAC, 1.5 kA Interrupt, Cartridge Body
Littelfuse® POWR-GARD® 216002P Fast Acting Cartridge Fuse, 2 A, 250 VAC, 1.5 kA Interrupt, Cartridge Body
SKU: L-F216002P
Manufacturer Part Number: 216002P
UPC: 079458901764
Documents
Short Description
Features
- Designed to international (IEC) standards for use globally
- Meets the IEC 60127-2, sheet 2 specification for fast acting fuses
- Lead-free
- Nickel plated brass cap, tin plated copper leads
- -55 to 125 deg C operating temperature
- 60 min minimum at 150%, 30 min maximum at 210%, 0.01 to 2 sec at 275%, 0.003 to 0.3 sec at 400%, 0.02 sec maximum at 1000% opening time
- 1.5 kA at 250 VAC interrupting rating
Specification
| Response Time | 60 min, 30 min, 0.01 to 2 s, 0.003 to 0.3 s, 0.02 s |
|---|---|
| Series | 216 |
| Terminal Type | Ferrule |
| Type | Fast Acting |
| Voltage Rating | 250 VAC |
| Application | For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits |
| Standard & Approvals | IEC 60127-2, CSA Certified, CE Certified, cRUus Listed, UL 248-4, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Indicating/Non-Indicating | Non-Indicating |
| Body Size | 5 mm Dia x 20 mm L |
| Body Type | Cartridge |
| Catalog ID | L-F216002P |
| Interrupt Rating | 1.5 kA |
| Material | Ceramic |
| Mounting Type | Holder |
| Amperage Rating | 2 A |
