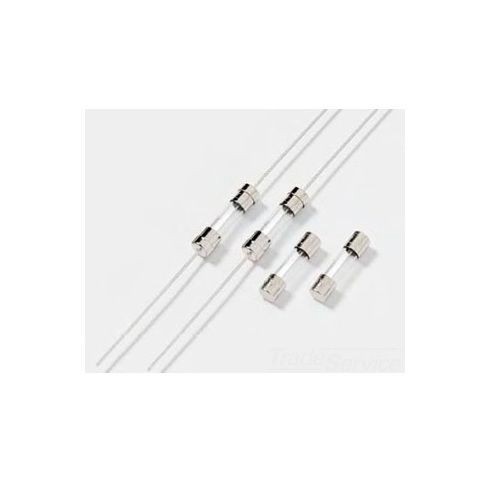

Littelfuse® POWR-GARD® Slo-Blo® 218005P Time Lag Cartridge Fuse, 5 A, 250 VAC, 50 A Interrupt, Class: RK5, Cartridge Body

Selected Littelfuse® POWR-GARD® Slo-Blo® 218005P Time Lag Cartridge Fuse, 5 A, 250 VAC, 50 A Interrupt, Class: RK5, Cartridge Body
Littelfuse® POWR-GARD® Slo-Blo® 218005P Time Lag Cartridge Fuse, 5 A, 250 VAC, 50 A Interrupt, Class: RK5, Cartridge Body

Documents

Short Description

For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • Slo-Blo® fuse, Designed to International (IEC) Standards for use globally
  • Meets the IEC 60127-2, Sheet 3 specification for time lag fuses
  • Lead free
  • Nickel-plated brass cap, tin plated copper leads
  • -55 deg C to 125 deg C operating temperature
  • 60 min minimum at 150%, 2 min maximum at 210%, 0.6 sec minimum and 10 sec maximum at 275%, 0.15 sec min and 3 sec maximum at 400%, 0.02 sec min and 0.3 sec maximum at 1000% response time
  • 35 amperes or 10 x rated current; (whichever is greater) to a maximum 100A @ 250 VAC, unity power factor interrupt rating
  • 35 kA at 250 VAC interrupt rating

Specification

Interrupt Rating
35 A
Material
Glass
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Body Size
5.2 mm Dia x 20 mm L
Body Style
Cylindrical
Catalog ID
L-F218005P
Class
RK5
Series
218
Terminal Type
Ferrule
Type
Time-Lag
Voltage Rating
250 VAC
Application
For general purpose circuits
Standard & Approvals
IEC 60127-2, CSA Certified, CE Certified, UL 248-12
Amperage Rating
5 A
