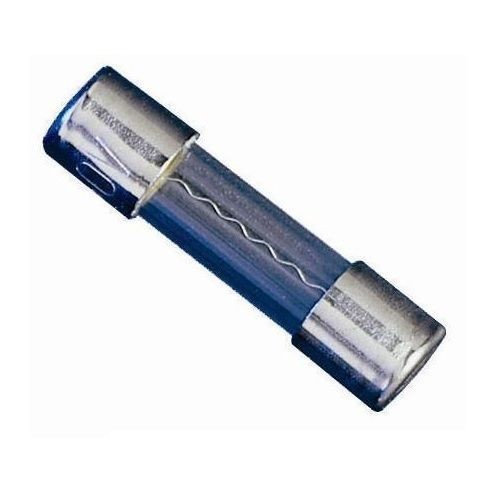

Littelfuse® POWR-GARD® 235.500P Fast Acting Cartridge Fuse, 0.5 A, 250 VAC, 10 kA, Class RK5, Cartridge Body

Selected Littelfuse® POWR-GARD® 235.500P Fast Acting Cartridge Fuse, 0.5 A, 250 VAC, 10 kA, Class RK5, Cartridge Body
Littelfuse® POWR-GARD® 235.500P Fast Acting Cartridge Fuse, 0.5 A, 250 VAC, 10 kA, Class RK5, Cartridge Body

Documents

Short Description

For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
  • 0.4265 ohms resistance
  • 0.06915 nominal melting I²T (A²sec)
  • -55 to 125 deg C operating temperature
  • 10 kA at 125 VAC interrupting rating
  • Lead free
  • Glass body, nickel plated brass end cap
  • Time delay
  • 4 hrs minimum at 1 1 hr maximum at 1.35 5 sec maximum at 200% response time

Specification

Interrupt Rating
35 A
Material
Glass
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Amperage Rating
0.5 A
Body Size
5.2 mm Dia x 20 mm L
Body Style
Cylindrical
Catalog ID
L-F235.500P
Class
RK5
Series
235
Type
Fast Acting
Voltage Rating
250 VAC
Application
For general purpose
Standard & Approvals
RoHS Complaint, UL 248-12 Listed, CSA Certified
