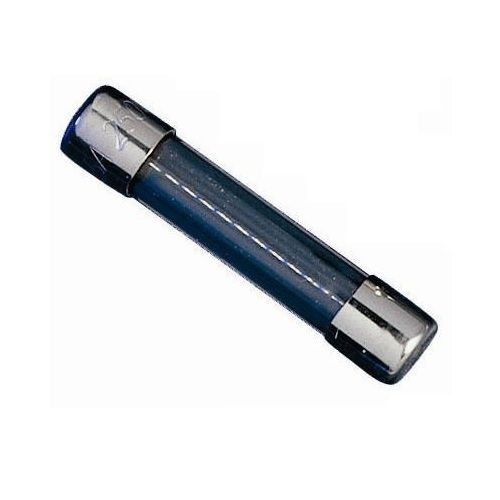

Littelfuse® POWR-GARD® 312001P Type 3AG Fast Acting Cartridge Fuse, 1 A, 250 VAC, 10 kA Interrupt, Cartridge Body

Selected Littelfuse® POWR-GARD® 312001P Type 3AG Fast Acting Cartridge Fuse, 1 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Littelfuse® POWR-GARD® 312001P Type 3AG Fast Acting Cartridge Fuse, 1 A, 250 VAC, 10 kA Interrupt, Cartridge Body

Documents

Short Description

The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Features

  • Available in cartridge and axial lead format and with various forming dimensions
  • Lead free
  • -55 to 125 deg C operating
  • Nickel-plated brass cap
  • 5 sec maximum at 2 4 hr minimum at 1 1 hr maximum at 1.35 response time

Specification

Interrupt Rating
35 A
Material
Glass
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Body Size
1/4 in Dia x 1-1/4 in L
Body Style
Cylindrical
Element
Single
Series
312
Terminal Type
Ferrule
Voltage Rating
250 VAC
Standard & Approvals
UL 248-14 File No. E10480, CSA File No. LR 29862, IC Certified, RoHS Compliant
Amperage Rating
1 A
Response Time
5 sec Maximum at 200%
Catalog ID
L-F312001P
Application
For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Type
Fast Acting
