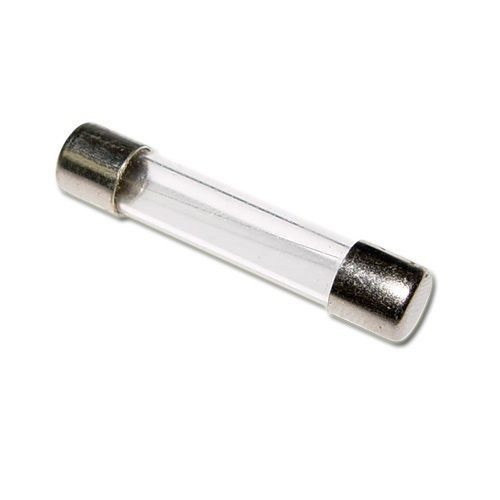

Littelfuse® POWR-GARD® 312008P Type 3AG Fast Acting Cartridge Fuse, 8 A, 250 VAC, 10 kA Interrupt, Cartridge Body

Selected Littelfuse® POWR-GARD® 312008P Type 3AG Fast Acting Cartridge Fuse, 8 A, 250 VAC, 10 kA Interrupt, Cartridge Body
Littelfuse® POWR-GARD® 312008P Type 3AG Fast Acting Cartridge Fuse, 8 A, 250 VAC, 10 kA Interrupt, Cartridge Body

Documents

Short Description

The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Features

  • Available in cartridge and axial lead format and with various forming dimensions
  • Lead free
  • -55 to 125 deg C operating
  • Nickel-plated brass cap
  • 5 sec maximum at 2 4 hr minimum at 1 1 hr maximum at 1.35 response time

Specification

Interrupt Rating
200 A
Material
Glass
Mounting Type
Holder
Body Size
1/4 in Dia x 1-1/4 in L
Body Style
Cylindrical
Series
312
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
250 VAC
Application
For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Standard & Approvals
UL 248-14 File No. E10480, CSA File No. LR 29862, IC Certified, RoHS Compliant
Amperage Rating
8 A
Response Time
5 sec Maximum at 200%
Catalog ID
L-F312008P
Order Interval
5
Minimum Order Qty
5
