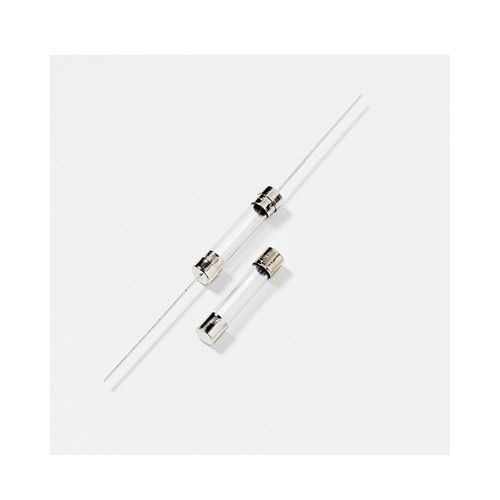

Littelfuse® POWR-GARD® 312012P Fast Acting Cartridge Fuse, 12 A, 32 VAC, 300 A Interrupt, Cartridge Body

Selected Littelfuse® POWR-GARD® 312012P Fast Acting Cartridge Fuse, 12 A, 32 VAC, 300 A Interrupt, Cartridge Body
Littelfuse® POWR-GARD® 312012P Fast Acting Cartridge Fuse, 12 A, 32 VAC, 300 A Interrupt, Cartridge Body

Documents

Short Description

The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Features

  • Available in cartridge and axial lead format and with various forming dimensions
  • Lead free
  • -55 to 125 deg C operating
  • Nickel-plated brass cap
  • 10 sec Maximum at 2 4 hr minimum at 1 1 hr maximum at 1.35 response time
  • 300 at 32 VAC interrupt rating

Specification

Interrupt Rating
300 A
Material
Glass
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Body Size
1/4 in Dia x 1-1/4 in L
Body Style
Cylindrical
Catalog ID
L-F312012P
Series
312
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
32 VAC
Application
For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Standard & Approvals
UL 248-14 File No. E10480, CSA File No. LR 29862, IC Certified, RoHS Compliant
Amperage Rating
12 A
