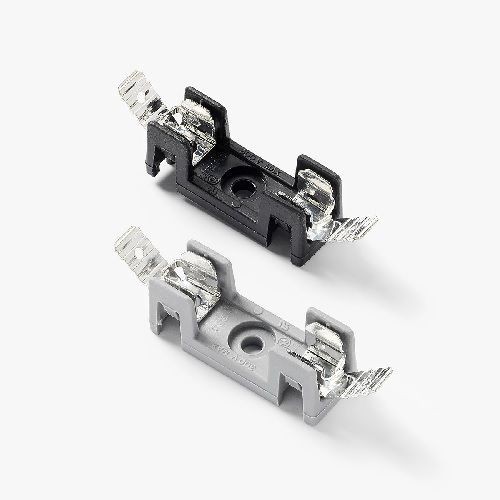

Littelfuse® OMNI-BLOK® 354601-GY Molded Base Non-Indicating Fuse Block, 600 VAC/VDC, 20 A, 1 Pole

Selected Littelfuse® OMNI-BLOK® 354601-GY Molded Base Non-Indicating Fuse Block, 600 VAC/VDC, 20 A, 1 Pole
Littelfuse® OMNI-BLOK® 354601-GY Molded Base Non-Indicating Fuse Block, 600 VAC/VDC, 20 A, 1 Pole

Short Description

A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.

Specification

Fuse Diameter
1/4 in
Fuse Length
1-1/4 in
Material
Thermoplastic
Mounting Type
Chassis
Number Of Poles
1
Voltage Rating
600 VAC/VDC
Standard & Approvals
RoHS Compliant, UL File No. E14721 Recognized, CSA File No.7316, UL 94-V-0 Flammability Rating
Amperage Rating
20 A
Color
Gray
Connection Type
NEMA Style Quick Clip
Application
Circuit Board Applications
Type
Molded Base Non-Indicating
Temperature Rating
-40 to 85 deg C
Suitable For Use With
3AB/3AG Fuse
Series
354
