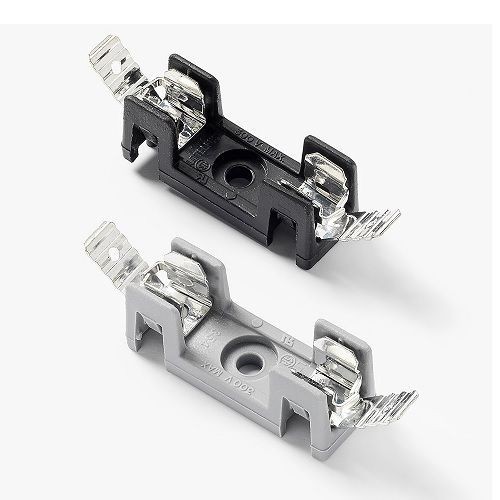

Littelfuse® 354802-GY 354 OMNI-BLOK® Molded Base Fuse Block, 600 VAC/VDC, 20 A, 2 Poles
Littelfuse® 354802-GY 354 OMNI-BLOK® Molded Base Fuse Block, 600 VAC/VDC, 20 A, 2 Poles
SKU: L-F354802-GY
Manufacturer Part Number: 354802-GY
UPC: 079458007664
Documents
Features
- A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock
- The unique design permits self-alignment of clips to fuse cap
- 1-piece clip/terminal assures low contact resistance
- Higher current ratings have been attained using spring brass clips
- Lead-free
- 1/4 in quick connect terminals
Specification
| Fuse Diameter | 1/4 in |
|---|---|
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting Type | Threaded |
| Number Of Poles | 2 |
| Temperature Rating | -40 to 85 deg C |
| Voltage Rating | 600 VAC/VDC |
| Amperage Rating | 20 A |
| Color | Gray |
| Class | 3AG |
| Standard & Approvals | UR Listed, CSA Certified, RoHS Compliant |
| Type | Molded Base |
| Series | 354 OMNI-BLOK |
| Connection Type | Quick Connect |
