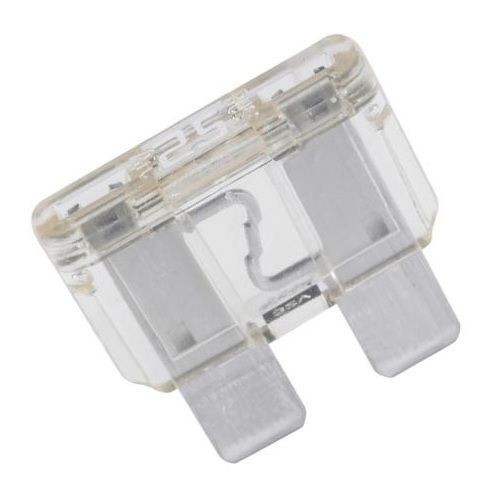

Littelfuse® ATO025 Fast Acting Smart Glow Automotive Fuse, 25 A, 32 VDC, 1 kA Interrupt

Selected Littelfuse® ATO025 Fast Acting Smart Glow Automotive Fuse, 25 A, 32 VDC, 1 kA Interrupt
Littelfuse® ATO025 Fast Acting Smart Glow Automotive Fuse, 25 A, 32 VDC, 1 kA Interrupt

Short Description

Developed by Littelfuse for the automotive industry, the ATOF® fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks. Readily identifiable and easily replaced, this fuse can be specified for a variety of low voltage electronic applications.

Features

  • 360000 sec minimum at 110%, 0.750 sec minimum and 600 sec maximum at 1.35 250 micro sec minimum and 50 sec maximum at 160%, 0.150 sec minimum and 5 sec maximum at 2 80 micro sec minimum and 500 micro sec maximum at 350%, 150 micro sec maximum at 600%, opening time
  • Color coded

Specification

Interrupt Rating
1 kA
Length
0.74 in
Material
Nylon
Mounting Type
Holder
Minimum Order Qty
5
Order Interval
5
Amperage Rating
25 A
Color
Clear
Series
ATO
Terminal Type
Blade
Type
Smart Glow
Voltage Rating
32 VDC
Width
3/4 in
Application
For low voltage electronic applications
Standard & Approvals
UL File No. AU1410, CSA File No. 29862, SAE J1284, ISO 8820-3, RoHS Compliant
Speed
Fast Acting
Depth
0.2 in
Catalog ID
L-FATO025
