Littelfuse® POWR-GARD® CCMR.800TXP Time Delay Fuse, 0.8 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

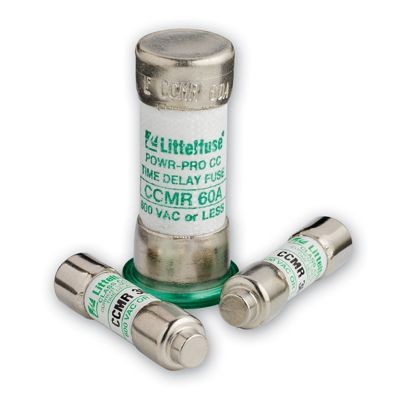

Selected CCMR17.5TXPLittelfuse® POWR-GARD® CCMR060.T Time Delay Fuse, 60 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CD Class, Cartridge Body
CCMR17.5TXPLittelfuse® POWR-GARD® CCMR060.T Time Delay Fuse, 60 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CD Class, Cartridge Body

Documents

Short Description

The CCMR series is ideal for space saving protection of motors upto 40 hp. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL listed fuses, Class CC fuses are the most current limiting, rating for rating.

Features

  • POWR-PRO™ performance
  • Extremely current limiting
  • 300 kA interrupting rating (self-certified)

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
20/200 kA
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Indicating/Non-Indicating
Non-Indicating
Amperage Rating
0.8 A
Body Size
0.41 in Dia x 1.5 in L
Body Type
Cartridge
Catalog ID
L-FCCMR.800TXP
Class
CC
Element
Dual
Series
CCMR
Terminal Type
Ferrule
Voltage Rating
600 VAC/250 VDC
Application
Motor and Motor Branch Circuit Protection Applications
Standard & Approvals
UL 248-4, E81895, CSA LR29862, CE Certified, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
