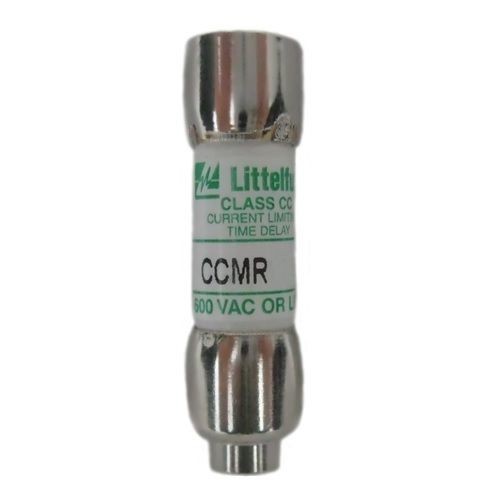

Littelfuse® POWR-GARD® CCMR010.TXP Time Delay Fuse, 10 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Selected Littelfuse® POWR-GARD® CCMR010.TXP Time Delay Fuse, 10 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse® POWR-GARD® CCMR010.TXP Time Delay Fuse, 10 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Documents

Short Description

The CCMR series is ideal for space saving protection of motors up to 40 hp. it was designed specifically to withstand sustained starting currents of small motors. the CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. compared to other UL listed fuses, class CC fuses are the most current-limiting, rating for rating.

Features

  • POWR-PRO® performance
  • 300 kA interrupting rating (self-certified)

Specification

Interrupt Rating
200/20 kA
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Body Size
0.41 in Dia x 1.5 in L
Body Style
Cartridge
Catalog ID
L-FCCMR010.TXP
Class
CC
Element
Dual
Series
CCMR
Terminal Type
Ferrule
Type
Extremely Current-Limiting
Voltage Rating
600 VAC/250 VDC
Application
Motor and Motor Branch Circuit Protection
Standard & Approvals
248-4 Class CC, UL File No. E81895, 248 Class CD, UL File: E81895, CSA File No. LR29862, CE Certified, RoHS Compliant
Amperage Rating
10 A
