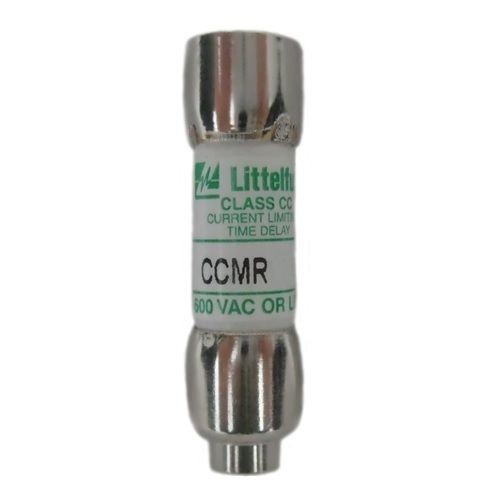

Littelfuse® POWR-GARD® CCMR02.5TXP Time Delay Fuse, 2.5 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Selected Littelfuse® POWR-GARD® CCMR02.5TXP Time Delay Fuse, 2.5 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse® POWR-GARD® CCMR02.5TXP Time Delay Fuse, 2.5 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Documents

Short Description

The CCMR series is ideal for space saving protection of motors up to 40 hp*. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL Listed fuses, Class CC fuses are the most current- limiting rating for rating.

Features

  • POWR-PRO Performance
  • Extremely current-limiting
  • High interrupting rating to safely interrupt over currents up to 300kA (self certified)
  • Provide Type II protection (no damage) to both NEMA rated and the more sensitive IEC (International Electromechanical Commission) type motor circuit components

Specification

Interrupt Rating
200 kA
Mounting Type
Holder
Series
CCMR
Terminal Type
Ferrule
Type
Current Limiting
Voltage Rating
600 VAC/250 VDC
Application
Motor and Motor Branch Circuit Protection
Standard & Approvals
UL 248-4, CSA Certified, RoHS Compliant
Amperage Rating
2.5 A
Body Size
0.85 in Dia x 1.88 in L
Body Style
Cartridge
Class
CC
Element
Dual
