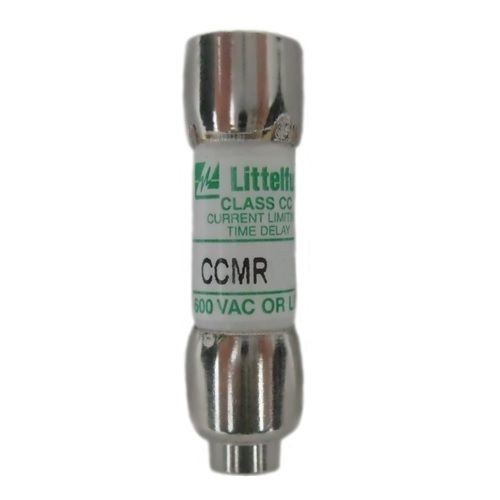

Littelfuse® POWR-PRO® CCMR035.T Time Delay Fuse, 35 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CD Class, Cartridge Body

Selected Littelfuse® POWR-PRO® CCMR035.T Time Delay Fuse, 35 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CD Class, Cartridge Body
Littelfuse® POWR-PRO® CCMR035.T Time Delay Fuse, 35 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CD Class, Cartridge Body

Documents

Short Description

The CCMR series is ideal for space saving protection of motors up to 40 hp*. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL Listed fuses, Class CC fuses are the most current- limiting rating for rating.

Features

  • CCMR Series dual element, time delay fuses are recommend for space-saving protection of motor circuits up to 40 HP
  • Extremely current-limiting
  • High interrupting rating to safely interrupt over currents up to 300kA (self certified)
  • Provide Type II protection (no damage) to both NEMA rated and the more sensitive IEC (International Electromechanical Commission) type motor circuit components

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
200 kA
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Amperage Rating
35 A
Body Size
0.85 in Dia x 1.88 in L
Body Style
Cartridge
Catalog ID
L-FCCMR035
Class
CC
Element
Dual
Series
CCMR
Terminal Type
Ferrule
Type
Current Limiting
Voltage Rating
600 VAC/250 VDC
Application
Motor and Motor Branch Circuit Protection
Standard & Approvals
UL 248-4, CSA Certified, RoHS Compliant
