Littelfuse® POWR-GARD® CCMR040.T CCMR Extremely Current Limiting Time Delay Fuse, 40 A, 600 VAC/250 VDC, 200/20 kA Interrupt, CD Class, Cartridge Body

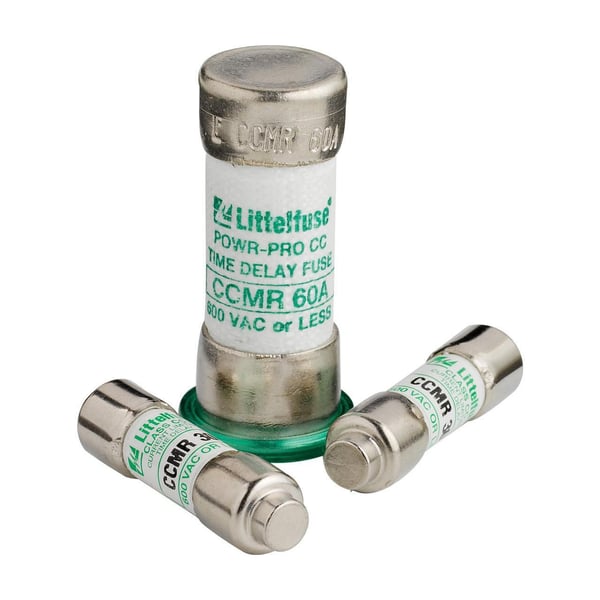

Selected Littelfuse CCMR035 T
Littelfuse® POWR-GARD® CCMR040.T CCMR Extremely Current Limiting Time Delay Fuse, 40 A, 600 VAC/250 VDC, 200/20 kA Interrupt, CD Class, Cartridge Body
SKU: L-FCCMR040
Manufacturer Part Number: CCMR040.T
Documents
Short Description
The CCMR series is ideal for space saving protection of motors up to 40 hp*. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL listed fuses, class CC fuses are the most current-limiting, rating for rating.
Features
- Only true dual-element time-delay CC fuses specifically engineered for motor branch circuit protection
- Provide type II protection (no damage) to both NEMA-rated and the more sensitive IEC (International Electromechanical commission) type motor circuit components
- Provide superior protection in a fraction of the space required by other fuse classes
- Extremely current-limiting - reduces damage caused by heating and magnetic effects of short circuit currents- stops damaging short circuit faster than any mechanical protective device
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Mounting Type | Holder |
| Terminal Type | Ferrule |
| Type | Extremely Current Limiting |
| Voltage Rating | 600 VAC/250 VDC |
| Standard & Approvals | UL File No E81895, CSA File No LR29862, RoHS Compliant |
| Amperage Rating | 40 A |
| Body Style | Cartridge |
| Body Type | Cartridge |
| Class | CD |
| Element | Dual |
| Indicating/Non-Indicating | Non-Indicating |
| Body Size | 0.85 in Dia x 1.88 in L |
| Application | For motor and motor branch circuit protection |
| Series | CCMR |
