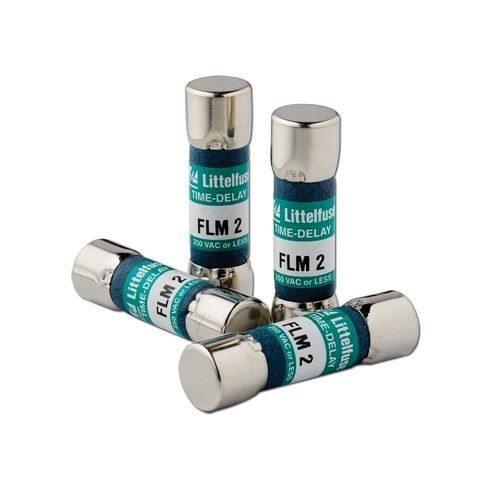

Littelfuse® POWR-GARD® FLM01.6 FLM Time Delay Supplemental Midget Fuse, 1.6 A, 250 VAC/125 VDC, 10 kA Interrupt, Cylindrical Body

Selected Littelfuse® POWR-GARD® FLM01.6 FLM Time Delay Supplemental Midget Fuse, 1.6 A, 250 VAC/125 VDC, 10 kA Interrupt, Cylindrical Body
Littelfuse® POWR-GARD® FLM01.6 FLM Time Delay Supplemental Midget Fuse, 1.6 A, 250 VAC/125 VDC, 10 kA Interrupt, Cylindrical Body

Documents

Short Description

For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.

Features

  • 5AG size fuse
  • 5 sec minimum delay for fuses rated at 3 A or less and 12 sec for fuses rated more than 3 A at 200% fuse rating
  • 250 V time-delay fuses used to protect circuits with high in-rush

Specification

Interrupt Rating
10 kA
Mounting Type
Clip
Response Time
5 sec
Series
FLM
Terminal Type
Ferrule
Type
Time Delay
Voltage Rating
250 VAC/125 VDC
Application
For supplementary protection of control circuits, street lighting, computers, DC circuits, solenoids, small motors and transformers
Standard & Approvals
UL File No. E10480, CSA File No. 029862_0_000, RoHS Compliant
Amperage Rating
1.6 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Class
Midget
