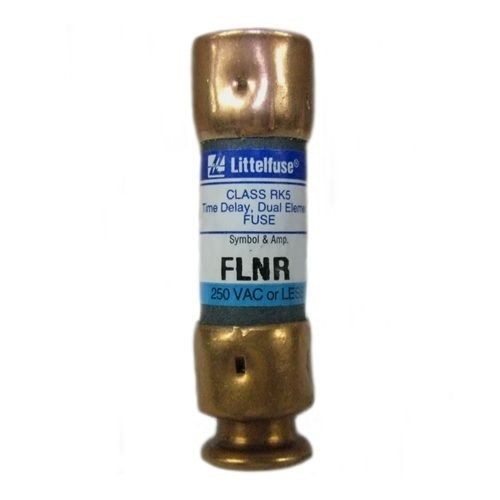

Littelfuse® POWR-GARD® FLNR040ID Current Limiting Time Delay Fuse, 40 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Selected Littelfuse® POWR-GARD® FLNR040ID Current Limiting Time Delay Fuse, 40 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Littelfuse® POWR-GARD® FLNR040ID Current Limiting Time Delay Fuse, 40 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Documents

Short Description

Littelfuse FLNR series fuses have been the superior UL Class RK5 dual-element time-delay fuses, and are the most widely used class of fuses. FLNR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by Indicator fuses.

Features

  • Reliable interruption of all over currents up to 200 kA
  • Faster acting short circuit protection than any non-current limiting mechanical protective device
  • Accurate and reliable - Automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
  • 300 kA RMS symmetrical self certified
  • Bronze caps
  • Industrial cylindrical cartridge fuses

Specification

Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Amperage Rating
40 A
Body Style
Cylindrical
Class
RK5
Response Time
10 sec at 500%
Voltage Rating
250 VAC/125 VDC
Catalog ID
L-FFLNR040ID
Body Size
13/16 in Dia x 3 in L
Material
Fiber
Interrupt Rating
200/20 kA
Standard & Approvals
UL 248-12, UL File No. E81895, CSA File No. LR29862, Federal Specification WF-1814, RoHS Complaint
Application
Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains and Motor Branch Circuits and All General Purpose Circuits
Type
Current Limiting
Terminal Type
Ferrule
Series
FLNR
Element
Dual
