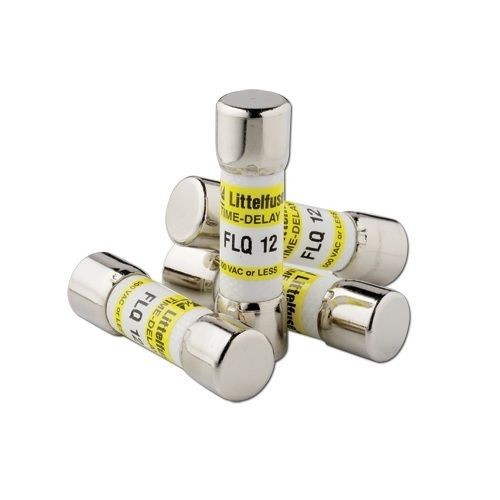

Littelfuse® POWR-GARD® FLQ.250 FLQ Time Delay Supplemental Midget Fuse, 0.25 A, 500 VAC/300 VDC, 10 kA Interrupt, Cylindrical Body
Littelfuse® POWR-GARD® FLQ.250 FLQ Time Delay Supplemental Midget Fuse, 0.25 A, 500 VAC/300 VDC, 10 kA Interrupt, Cylindrical Body
SKU: L-FFLQ.250
Manufacturer Part Number: FLQ.250
UPC: 079458160192
Documents
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Material | Melamine |
| Mounting Type | Clip |
| Response Time | 5 sec |
| Series | FLQ |
| Terminal Type | Ferrule |
| Type | Time Delay |
| Voltage Rating | 500 VAC/300 VDC |
| Application | For supplementary protection of control circuits, street lighting, computers, DC circuits, solenoids, small motors and transformers |
| Standard & Approvals | UL File No. E10480, CSA File No. LR29862, RoHS Compliant |
| Amperage Rating | 0.25 A |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Body Style | Cylindrical |
| Class | Midget |
