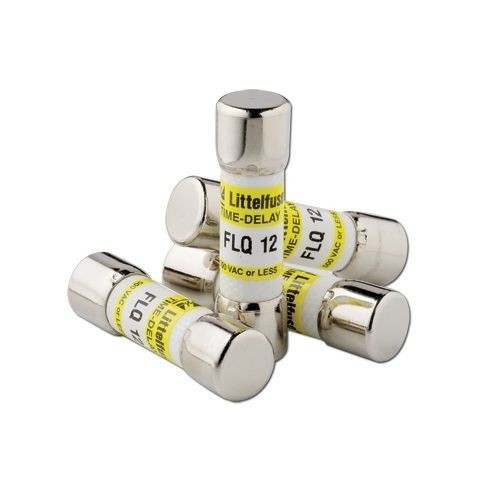

Littelfuse® POWR-GARD® FLQ2.25 FLQ Time Delay Supplemental Midget Fuse, 2.25 A, 500 VAC/300 VDC, 10 kA Interrupt, Cylindrical Body

Selected Littelfuse® POWR-GARD® FLQ2.25 FLQ Time Delay Supplemental Midget Fuse, 2.25 A, 500 VAC/300 VDC, 10 kA Interrupt, Cylindrical Body
Littelfuse® POWR-GARD® FLQ2.25 FLQ Time Delay Supplemental Midget Fuse, 2.25 A, 500 VAC/300 VDC, 10 kA Interrupt, Cylindrical Body

Documents

Features

    Specification

    Interrupt Rating
    10 kA
    Material
    Melamine
    Mounting Type
    Clip
    Minimum Order Qty
    1
    Order Interval
    1
    Amperage Rating
    2.25 A
    Body Size
    13/32 in Dia x 1-1/2 in L
    Body Style
    Cylindrical
    Catalog ID
    L-FFLQ2.25
    Class
    Midget
    Response Time
    5 sec
    Terminal Type
    Ferrule
    Type
    Time Delay
    Application
    For supplementary protection of control circuits, street lighting, computers, DC circuits, solenoids, small motors and transformers
    Standard & Approvals
    UL File No. E10480, CSA File No. LR29862, RoHS Compliant
    Voltage Rating
    500 VAC/300 VDC
    Series
    FLQ
